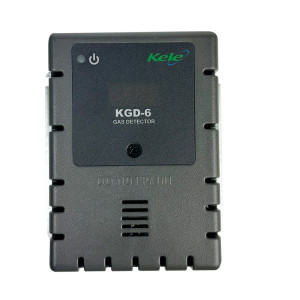

KGD-6-HS-M | Kele | Gas & Specialty Sensors

FIXED GAS DETECTOR, H2S, WALL MOUNT, 4-20MA, 2 RELAYS, 5A SPDT, 12-24VAC / 12-32VDC, 0-50 PPM, MODBUS

Brand:Kele

MPN:KGD-6-HS-M

SKU:KGD-6-HS-M

List Price:

$2,040.00

Today's Price:

$1,060.80

product datasheet

installation instructions

Lead time of 14 days. Chat with Kele experts now

Tech Tip

The NPU software is required to set all of the communication parameters upon startup of any communicating KGD unit. Follow the links below for needed information.
NPU Software
Object Mappings (Dual Sensor)
Object Mappings (Single Sensor)

Was this helpful?

product series specifications

The NPU software is required to set all of the communication parameters upon startup of any communicating KGD unit. Follow the links below for needed information.

NPU Software
Object Mappings (Dual Sensor)
Object Mappings (Single Sensor)

Power: 6-Series: 12 to 24 VAC, 3W (Max) or 12 to 32 VDC

12-Series: 100 to 240 VAC, 1A (Max)

Enclosure: NEMA 1, Polycarbonate

Mounting: 4" x 4" Electrical box

Dimensions: 4 1/2" x 4" x 2 1/8", (11.4 x 10.2 x 5.4 cm)

Output: 4-20mA or BACnet MS/TP / Modbus RTU

Relay: (1) 5-amp SPDT fan & (1) 0.5-amp Alarm

Ambient Temperature: 0 to 125 deg. F, (-18 to 52 deg.C)

Ambient RH: 10-90% RH noncondensing

Warranty: Two-year limited warranty

Indication: LED (can turn ON/OFF)

Approvals: ETL Listed to UL Standards

Weight: 1lb, (0.45kg)

Gas: Carbon Monoxide: (CO) 0-200 ppm

Nitrogen Dioxide: (NO2) 0-20 ppm

Combustibles: (LP, NG, H2) 0-50% LEL

Hydrogen Sulfide: (H2S) 0-50 ppm

Oxygen: (O2) 0-25% V/V

Carbon Dioxide: (CO2) 0-5% V/V

Ammonia: (NH3) 0-100 ppm

product series features

BACnet and Modbus are options when ordering or can be added later with communication module
5 A SPDT fan relay, 0.5A alarm relay to control, valves, louvers, horn and strobes
4-20mA output to control VFDs and send to BMS
LED display to show gas concentrations
Sensor End of life notification
Field calibration kits available
Easy installation to 4x4 electrical boxes via mud plate

more information & related documents

Series Description

<p>The Kele KGD Series fixed gas detectors provide life-saving solutions to protect people and property. These fixed gas detectors are designed for low-level detection, mitigation, and notification. Let these detectors do the work for you by shutting off valves, turning on fans, engaging horns and strobes, and providing notification to fire panels and building automation systems when gases reach vital limits.</p>

Kele Description

FIXED GAS DETECTOR, H2S, WALL MOUNT, 4-20MA, 2 RELAYS, 5A SPDT, 12-24VAC / 12-32VDC, 0-50 PPM, MODBUS

Manufacturer

Kele
