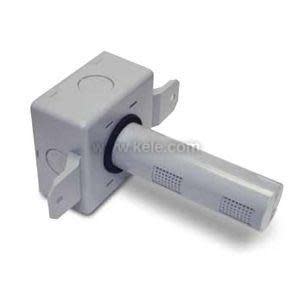

T8041 | Telaire/Amphenol | Gas & Specialty Sensors

Supply Voltage: 18 to 30 VAC RMS, 50/60 Hz or 18 to 42 VDC, polarity protected.

Signal Output: 0 to 5V or 0 to 10V (Factory Configured)

Power Consumption: Typical values (1.65 watts peak, 0.65 watts avg.@ 42 VDC)

Accuracy: ±40 ppm +3% of reading @ 22°C (72°F) when compared with a factory

Non-Linearity: <1% of full scale @ 22°C (72°F)

Temperature Dependence: 0.2% of full scale per °C

Measurement Range: 0-2000 ppm

Calibration Interval: None, uses ABC Logic (Automatic Background Calibration)

Warm Up Time: Two minutes (operational); 10 minutes to achieve maximum accuracy

Response Time: Three minutes typical for a 90% step change at low duct speeds

Pressure Dependence: 0.13% of reading per mm of mercury

Wiring Terminations: Leads, Terminals

Operating Temperature: 0 to 50°C (32 to 122°F)

Operating Humidity: 0% to 95% RH, noncondensing

Dimensions:

Probe Length T8041 4.09" (10.38 cm) / T8042 8.07" (20.51 cm)

Probe Diameter 1.24" (3.15 cm)

Junction Box Depth 1.58" (4.02 cm)

Junction Box H x L 3.05" x 3.05" (7.46 cm x 7.46 cm)

Weight: 0.5 lb (0.23 Kg)

Approvals: CE EMC, RoHS Compliant

Warranty: 1 year
