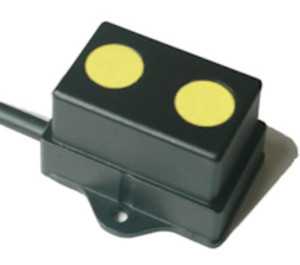

T3031-2-2K-24-P | Telaire/Amphenol | Gas & Specialty Sensors
INDOOR AGRICULTURE CO2 SENSOR, DUAL CH, 0-2K PPM, 0-10VDC
Brand:Telaire/Amphenol
MPN:T3031-2-2K-24-P
SKU:T3031-2-2K-24-P
List Price:
$975.00
Today's Price:
$507.00
Log in for customized pricingproduct specifications
Measurement Range
0 - 2,000 ppm
Display
No
Application
Greenhouse,Laboratory,Food & Beverage,IAQ,Parking Garage,Agricultural
Output Signal
Current
product series specifications
Power Supply:15–15 Vdc ±10%, 24 - 18-30 VAC RMS, 50/60 Hz, or 18-42 VDC, polarity protected
Power Consumption:Typical 0.7 W at nominal voltage of 24V AC RMS
Sensing Method:Non-Dispersive Infra-Red (NDIR), single or dual wavelength
Resolution:Minimum 10bit or analog equivalent
Accuracy:
Single Wavelength (0~2,000 ppm as example):
400-1250 ppm ±30 ppm or 3% of reading, whichever is greater*
1250-2000 ppm ±5% of reading + 30ppm *,**
Dual Wavelength (0~2,000ppm range):
75 ppm or 10% of reading (whichever is greater)
±5% of reading or ±0.3 vol% CO2 (whichever is larger) at 0 - 20 vol% CO2 and 0°C to +25°C
At 25°C to 50°C additional ±0.1% of reading or ±0.01 vol% CO2 (whichever is larger) per °C.
*Tolerance based on span gas of ±2%, ** ABC Logic not deactivated
Ambient Temperature:0° to +50°C (measures within tolerance)
Operating Temperature:-30° to +50°C (Sensor Is Powered)
Storage Temperature:-40° to +70°C
RH Range:0% to 99% RH (non-condensing)
Digital Output:Modbus over RS485, UART
Analog Output:0-5 V, 0-10 V, 4-20mA
product series features
- Accurate carbon dioxide transmitter for HVAC control applications
- Easy mount with 2 external tabs
- Rated up to IP67 (build dependent)
- Available with potting
- Different calibrations available up to 20% CO2 concentration
- Analogue or digital output options
- Non-Dispersive Infra-Red measuring technology
- Sensors are shipped factory calibrated
- Accuracy for 10 year life
- Extended operating temperature range
more information & related documents
Series Description
The Telaire/Amphenol Advanced Sensors T3000 CO2 Series offers a range of sensors designed to meet the specific needs of customers who require carbon dioxide measurement in harsh or difficult environments. Based on a series of modules, the casing offers a number of combinations to meet the needs of range, supply voltage, and output type in a variety of applications. Example applications include incubators, buses, refrigerators, subway stations, railway carriages, growth facilities, glass houses, pig, chicken, mushroom sheds, and many other agriculture applications.
Kele Description
INDOOR AGRICULTURE CO2 SENSOR, DUAL CH, 0-2K PPM, 0-10VDC
Manufacturer
Telaire/Amphenol
Telaire T3000 Harsh Environment Applications
