GH3WMCBR1 | Greystone Energy Systems | Gas & Specialty Sensors

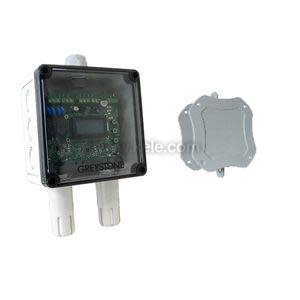

Greenhouse Horticulture Sensor, Temperature, Humdity, & Carbon Dioxide, Wall Mount, 5” x 5” with Solid Cover, BACnet® communications, 1 Relay

Brand:Greystone Energy Systems

MPN:GH3WMCBR1

SKU:GH3WMCBR1

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

product specifications

Communication Protocol

BACnet

Housing Material

Poly

Relay

1 Relay

Measurement Range

0 - 5,000 ppm

Display

LCD

Enclosure Rating

NEMA 4X,IP65

Accessory

GHP-CO2

Application

Greenhouse,Laboratory,Food & Beverage,IAQ,Parking Garage,Agricultural

Output Signal

Communicating

product series specifications

Power Supply: 24 Vac/dc ±20% (non-isolated half-wave rectified)

Consumption:

Current: 120 mA max @ 24 Vdc, 220 mA max @ 24 Vac

Voltage: 80 mA max @ 24 Vdc, 130 mA max @ 24 Vac

BACnetÆ/Modbus: 75 mA max @ 24 Vdc, 125 mA max @ 24 Vac

Protection Circuitry: Reverse voltage protected and overvoltage protected

Operating Conditions: -10 to 50°C (14 to 122°F), 5 to 95 %RH non-condensing

Storage Conditions: -30 to 60°C (-22 to 140°F)

Enclosure: IP65 (NEMA 4X)

Enclosure Dimensions: 130mm W x 130mm H x 75mm D (5.12" x 5.12" x 2.95")

Wiring Conditions: Screw terminal block (14 to 22 AWG)

Country of Origin: Canada

LCD Display:

Size: 35mm W x 15mm H (1.4" x 0.6") alpha-numeric 2 line x 8 characters

Backlight: Enable or disable via menu or network

Analog Outputs:

Output Signals: 4-20 mA active (sourcing) or 0-5 Vdc / 0-10 Vdc

Output Drive Capability: Current - 550Ω maximum

Voltage - 5KΩ minimum

BACnetÆ:

Interface: MS/TP, 2 wire RS-485

Baud Rate: 9600, 19200, 38400, 57600, 76800, or 115200

Address Range: 0 to 127

Modbus:

Interface: MS/TP, 2 wire RS-485

Baud Rate: 9600, 19200, 38400, 57600, 76800, or 115200

Address Range: 1 to 255

Temperature Sensor:

Type: NTC thermistor

Accuracy: ±0.2°C (±0.4°F)

Range: 0 to 50°C (32 to 122°F)

Relative Humidity Sensor:

Type: Thermoset polymer-based capacitive

Accuracy: ±2 %RH

Range: 0 to 100 %RH

Hysteresis: ±1.5

product series features

LCD for configuration and visual indication
Various output signal types
Optional relays for alarm indication

more information & related documents

Series Description

The Greystone GH Series greenhouse/horticulture sensor is designed for a greenhouse or indoor grow facility to monitor and allow control for optimum plant-growing conditions. The GH Series is available in two models: temperature & humidity or temperature, humidity, & carbon dioxide. The GH Series utilizes a highly accurate and reliable dual-channel, non-dispersive infrared (NDIR) sensor to monitor CO2, a precision thermistor to monitor temperature, and a thermoset polymer-based capacitance sensor to measure humidity levels. All sensors are encapsulated in filtered sensor pods that are field replaceable. Features include an LCD for configuration and visual indication, various output signal types, and optional relays for alarm indication. An IP65-rated enclosure, that can be either wall-mounted or suspended from the ceiling, is provided to protect against moisture penetration.

Kele Description

CO2 SENSOR, WALL, +/-50 PPM, 0-5000 PPM, BACNET, 1

Manufacturer

Greystone Energy Systems
