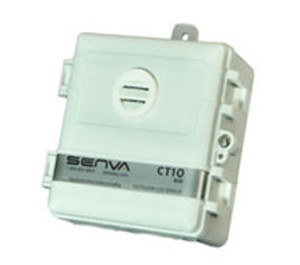

CT1O-G3D | Senva | Gas & Specialty Sensors

Power Supply: 12-30VDC, 50mA max / 24VAC(1), 100mA max.

Analog Outputs:

Dual Analog: 3-wire 4-20mA and 0-5V/0-10V (2) (dip switch selectable)

Output scaling: CO2 0 - 2000 (default) or 0 - 5000/10000 ppm (selectable)

Output Scaling Temperature: 32 to 122°F (0-50°C) or -40 to 140°F (-40-60°C) (Switch Selectable)

Digital Setpoint Output: Programmable Solid-state, 1A @ 30VAC/DC, N.O.

CO2 Sensor Performance:

Type: Non-dispersive Infrared (NDIR) ±30ppm, ±3% of reading (0-2000ppm), 0-50oC, 0-85%RH

±50ppm, ±5% of reading (2000-5000ppm), 0-50oC, 0-85%RH

Accuracy: Consult factory for 5000-10000ppm accuracy

Response time: 60s to 90% reading

Output update rate: 1s

Operating Environment: 14 to 122oF (-10 to 50∫C), 0 to 95% RH†

LCD Menu Setup Parameters:

SPH, Setpoint, Hi (On point): 500ppm to full-scale (800ppm default)

SPL, Setpoint, Lo (Off point): 400ppm to full-scale-50 (700ppm default)

SCL, Scaling: 0-2000ppm (default), 0-5000ppm, 0-10000ppm

ADJ, Adjustment: Offset adjustment +/-250ppm (0 default

CAL, Calibration mode: Automatic mode ON or OFF (default=ON)

RUN, Run mode: Displays CO2 in ppm

Operating Environment:

Temperature: -4 to 122°F (-20 to 50°C)

Humidity: 0-95% non-condensing

Enclosure:

Material: ABS/Polycarbonate

Enclosure Rating: Nema 1; Add drain holes to enclosure bottom to achieve Nema 3R rating

Dimensions: 4.0' h x 4.4"w x 2.1"d (+6.8" probe)
