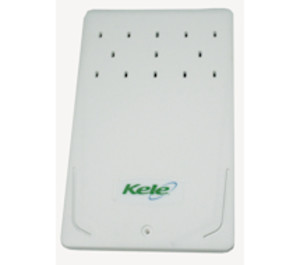

KULP-5K-BK | Kele | Gas & Specialty Sensors

CO2 WALL SENSOR/5,000PPM/LED-GRN/YLW/RED/BLACK ENC

Brand:Kele

MPN:KULP-5K-BK

SKU:KULP-5K-BK

List Price:

$339.00

Today's Price:

$176.28

Lead time of 7 days. Chat with Kele experts now

product series specifications

Operating Principle: Dual-beam Non-dispersive infrared

Gas Sampling Method: Diffusion

Measurement Range: 2,000 ppm or 5,000 ppm

Repeatability: ±20 ppm CO2

Measurement Accuracy: ± 30 ppm ± 2% of reading

Recommended Calibration Interval: 5 years

Response Time: Less than 1 minute

Power Requirements: 18 - 30 VDC or 18 - 28 VRMS AC

Operating Temperature Range: 10° - 50°C

Operating Humidity Range: 0 - 95% RH, non-condensing

Analog Output (linear), field-selectable with slider switch: 0 – 5 Volts DC, 0 – 10 Volts DC, or 4-20 mA (RL > 500 Ω)

Calibration: Single gas: 2,000 ppm (kits available)

Dimensions: 2.84"W x 4.58"H and 0.28"T above wall surface when mounted in junction box

Weight: 5.85 oz (0.17 kg)

Enclosure Material: UV-stabilized and UL 94V-0 flame resistant ABS plastic

Warranty: 7 years on electronic components, 3 years on NDIR sensor

product series features

Performance, All new compact CO2 sensor with a dual-beam detector increases precision and long-term stability
Value, Fail-safe circuit protection with pluggable terminal prevents damage from installation errors
Convenience, Mounts on a standard single gang junction box and connector can be pre-wired
Design, 0.28 inch profile height unobtrusively integrates into any architectural decor
Simplicity, Switch-selectable output
4-20 mA output
0-5 V output
0-10 V output

more information & related documents

Series Description

The Kele KULP Carbon Dioxide (CO2) Room Sensor is the sleek new member of the Kele HVAC CO2 sensor family. When installed, this low profile unit has only about a quarter inch of relief above the wall surface, discreetly blending-into any architectural motif. But don't be fooled by its slim profile. Inside is a powerhouse of modern sensor technology. The compact dual-beam detection system sets this product apart from the competition, ensuring accurate operation without the need for a in.self calibration in. algorithm and its attendant operational limitations. The KULP can be used with any building occupancy profile. When you need the right product, right now, count on Kele.

Kele Description

CO2 WALL SENSOR/5,000PPM/LED-GRN/YLW/RED/BLACK ENC

Manufacturer

Kele
