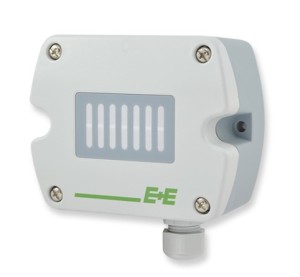

EE820-HV3A3E1 | E+E Elektronik | Gas & Specialty Sensors

CO2 SENSOR, 0-10000PPM 0-10V, M16 CABLE GLAND

Brand:E+E Elektronik

MPN:EE820-HV3A3E1

SKU:EE820-HV3A3E1

List Price:

$1,932.00

Today's Price:

$1,004.64

Lead time of > 15 days. Chat with Kele experts now

product series specifications

Measuring range CO₂

0...2000 ppm
0...5000 ppm
0...10000 ppm

Accuracy CO₂ at 25 °C (77 °F) and 1013 mbar (14.7 psi)

± (50ppm + 2% of measuring value)
± (50ppm + 3% of measuring value)
± (100ppm + 5% of measuring value)

Output analogue

0-10 V or 4-20 mA

Supply

24V AC/DC

product series features

External mounting holes
Knockout for ½" conduit fitting (US)
IP54 enclosure
CO2 auto-calibration
Service interface for configuration and adjustment
Bayonet screws - Opened / closed with a ¼ rotation

more information & related documents

Series Description

The EE820 measures CO2 concentration reliably in harsh, demanding applications. A multipoint CO2 and temperature factory adjustment leads to excellent accuracy over the entire temperature working range.

Kele Description

CO2 SENSOR, 0-10000PPM 0-10V, M16 CABLE GLAND

Manufacturer

E+E Elektronik
