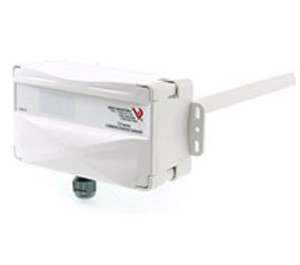

* product series image displayed

AA39 | Veris | Gas & Specialty Sensors

CARBON MONOXIDE TEST KIT 13L CYLINDER

Brand:Veris

MPN:AA39

SKU:AA39

List Price:

$-.--

Today's Price:

$-.--

product specifications

Measurement Range

0 - 2,000 ppm

Display

Application

Commerical Building,Industrial Site,Hospital,Mine,Aircraft

Output Signal

Current

product series specifications

Input Power: Class 2; 20 to 30 Vdc/24 AC 50/60 Hz; 100 mA max.

Analog Output: 4 to 20 mA (clipped & capped)/0 to 10 Vdc (selectable)

Operating Temperature Range: 0 to 50 °C (32 to 122 °F)

Operating Humidity Range: 0 to 95% RH non-condensing

Housing Material: High impact ABS plastic

Terminal Block Torque: 0.5 to 0.6 N-m (4.4 to 5.3 in-lbf) max

Terminal Block Wire Size: 24 to 12 AWG (0.25 to 2.5mm2)

Sensor Type: Non-dispersive infrared, diffusion sampling

Output Range: 0 to 2000 ppm

Accuracy: ±30 ppm ±2% of measured value

Repeatability: ±20 ppm ±1% of the measured value

Response Time: < 60 seconds for 90% step change

Limited Warranty: 3 years

product series features

Microprocessorbased
NDIR -Non-dispersive infraredtechnology
Self-calibrating
Low ambient sensitivity

more information & related documents

Series Description

The Veris CDE Series is a non-dispersive infrared (NDIR) sensor designed for measuring environmental CO2 concentration in ventilation systems and indoor living spaces. The measurement range from 0 to 2000 ppm makes it compliant with ASHRAE and other standards for ventilation control. The Veris CDE Series provides a user-selectable 4-20 mA or 0- 10 VDC output for versatility. Microprocessor-based digital electronics and a unique self-calibration algorithm improve long-term stability and accuracy.

Kele Description

CARBON MONOXIDE TEST KIT 13L CYLINDER

Manufacturer

Veris
