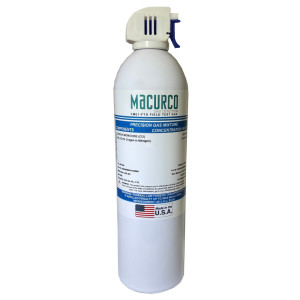

A tall white metal cylinder for calibration gas with a printed label describing its contents and a small white and blue valve handle on top.

CME1-FTG | Macurco | Gas & Specialty Sensors

CALIBRATION GAS 500 PPM CO

Brand:Macurco

MPN:CME1-FTG

SKU:CME1-FTG

List Price:

$215.00

Today's Price:

$111.80

catalog page

How To: Field Test

Lead time of 3 days. Chat with Kele experts now

product series specifications

Supply Voltage: 12 to 24 VAC @ 3 VA or 12 to 32 VDC @ 125 mA, reverse polarity protected

Accuracy: ±5% of range

Supply Current: Stand by 23 mA @ 24 VDC

Fan relay: 50 mA @ 24 VDC

Both relays (alarm): 75 mA @ 24 VDC

Signal Output: 4-20 mA @ 900 Ω

Output Range (4-20 mA): CM-6: 0-200 ppm, GD6: 0-50% L.E.L Methane, Propane, Hydrogen, TX-6-AM: 0-100 ppm NH3, TX-6-ND: 0-20 ppm NO2, TX-6-HS: 0-50 ppm H2S, OX-6: 0-25% v/v, CD-6: 0-2,000 PPM

Life Expectancy: 7+ years

Visual Indication: LED (1) Status (green)

Display: 3 digit LED

Buzzer: 85 dba @ 4ʼ (10cm)

Time Range: Fan and Alarm: relay minimum run time: selectable Off (default), 3, 5, 10 or 15 minutes

Relay Output:Fan: 5A, 240 VAC, pilot duty SPDT, Alarm: 0.5A @ 200 Volts, 10 VA, (1 ppm DIF)

Time Delay: Fan and Alarm: Selectable at 0, 1, 3 (default), 5 and 10 minutes

Wiring Terminations: Plugs/terminals

Operating Temperature: 0° to 125°F (-18° to 52°C)

Operating Humidity: 10 to 90% RH

Enclosure Rating: NEMA 1

Dimensions: 4.5"W x 4.0"H x 2.125"D (11.4 x 10.2 x 5.4 cm)

Weight: 1.0 lbs (0.45 Kg)

Approvals: ETL Listed to UL 61010-1, CAN/CSA C22.2 No 61010-1

Warranty: 2 year

product series features

Easy calibration
Selectable fan and alarm activation
Mounts on standard 4x4 electrical box
Internally supervised system
Easy functional verification
Adjustable setpoints
Digital display

more information & related documents

Series Description

The Macurco™ GD6, TX-6-AM, TX-6-HS, TX-6-ND & OX-6 Series are low voltage, dual relay detectors, controllers and transducers. Each device has selectable 4-20 mA output, buzzer and digital display options. It is an electronic detection system used to measure the concentration of various gases. The GD6 is a low level meter capable of displaying from 0-50% L.E.L of Methane, Propane or Hydrogen.The TX-6-AM is a low level meter capable of displaying from 0-100 ppm of NH3 (Ammonia). The TX-6-ND is a low level meter capable of displaying from 0-20 ppm of NO2 (Nitrogen Dioxide). The TX-6-HS is a low level meter capable of displaying from 0-50 ppm of H2S (Hyrdogen Sulfide). Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

CALIBRATION GAS 500 PPM CO

Manufacturer

Macurco
