FM300 | Belimo | Flow

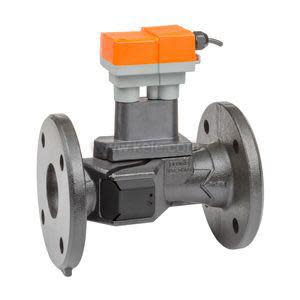

Liquid Flow sensor 3", ANSI Class 125, ∆p 1.89 psi, FS 215 GPM
Brand:Belimo
MPN:FM300
SKU:FM300
List Price:
$9,134.00
Today's Price:
$4,749.68
Log in for customized pricingproduct specifications
Type
Ultrasonic Flow Meter
Accuracy
2%
Pipe Size
3 in
Supply Voltage (Nominal)
24 VAC,24 VDC
Max Temperature
250 °F
product series specifications
Meter Sizes: 1/2”, 3/4”, 1”, 1 1/4”1 1/2”, 2”
Supply Voltage: 24 VAC ±20%, 24 VDC -10%+20%
Signal Output: 0-10VDC
Accuracy: ±2.0%
Repeatability: ±0.5%
Sensor Type: Ultrasonic w/glycol and temperature compensation
Flow Ranges:
½" 0.07-06.6 GPM
¾" 0.13-12.4 GPM
1" 0.22-21.8 GPM
1-1/4" 0.35-34.2 GPM
1-1/2" 0.48-47.5 GPM
2" 0.92-91.2 GPM
Overpressure (Burst): 360psi
Operating Temperature: -4 to +250°F (-20 to +120°C)
Media Compatibility: Chilled, hot water, up to 60% glycol
Process Connection:
FM050 inlet 0.5" [15] Npt female, outlet 0.5" [15] Npt male
FM075 inlet 0.75" [20] Npt female, outlet 0.75Z" [20] Npt male
FM100 inlet 1" [25] Npt female, outlet 1" [25] Npt male
FM125 inlet 1.25" [32] Npt female, outlet 1.25" [32] Npt male
FM150 inlet 1.5" [40] Npt female, outlet 1.5" [40] Npt male
FM200 inlet 2” [50] Npt female, outlet 2" [50] Npt male
Wiring Terminations: Black (ground), red (24 VAC/DC), white (VDC feedback signal)
Enclosure: NEMA 2, IP54, UL enclosure type 2
Dimensions:
FM050 4.5" [114] x 1.5" [38] x 4.88" [123.9]
FM075 5.10" [129] x 1.5" [38] x 5.10” [129]
FM100 5.37" [136.4] x 1.5” [38] x 5.25" [133.4]
FM125 5.5" [140] x 1.5" [38] x .62" [143]
FM150 5.62" [143] x 1.5" [38] x 6.13" [156]
FM200 5.88" [149] x 1.5" [38] x 6.5" [165]
Approvals: ISO 9001, UL 2043, UL 50
Warranty: 5 years
product series features
- The flow meter incorporates an embedded temperature sensor which enables Belimo's patented temperature and glycol compensation logic to accurately read flow over a wide range of water variables. Easy installation and compact to fit anywhere.
more information & related documents
Series Description
Belimo FM Series Ultrasonic Flow Meters is an accurate and repeatable liquid flow measurement meter by utilizing ultrasonic transit time technology. The transducers perform as both emitter and receiver to provide accurate signal reflection. The ultrasonic flow meters are designed for HVAC chilled water, hot water, and water/glycol solutions from -4°F to 250°F [-20°C to 120°C] up to 60% glycol. The flow meter incorporates an embedded temperature sensor which enables Belimo's patented temperature and glycol compensation logic to accurately read flow over a wide range of water variables. Easy installation and compact to fit anywhere.
Kele Description
FLOW MTR FLANGED/3IN/125 ANSI/215GPM
Manufacturer
Belimo
