DW-G-WZ-FWBKWW-XX-G-F | Badger Meter | Flow
FLOW METER ULTRASONIC MED PIPE SUBDTTN 150FTCABLE
Brand:Badger Meter
MPN:DW-G-WZ-FWBKWW-XX-G-F
SKU:DW-G-WZ-FWBKWW-XX-G-F
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct series specifications
- Power Supply:
- Input range 10…40V DC and 9…28V AC RMS
- :
- AC input voltage frequency range 50…60 Hz
- :
- Maximum 8 Watts power consumption:
- :
- Isolated from power ground:
- Flow Meter Input:
- 1 or 2 independent channels
- :
- Configurable as square wave 0…30V pulse with 2.5 V threshold
- :
- Configurable as sine wave, zero-centered with 200 mV amplitude and 45 mV threshold
- :
- 0…10 kHz frequency input range
- :
- Over-voltage, transient and reverse polarity protected
- Frequency Outputs:
- 2 independent channels
- :
- TTL, 1…4000 Hz, square wave
- :
- Resolution 0.01 Hz
- :
- Uncertainty ±0.01% RDG
- Analog Outputs:
- 2 independent channels
- :
- 0…5V, 0…10V or 4…20 mA
- :
- 16-bit resolution (0…10V and 4…20 mA), 15-bit resolution (0…5V)
- :
- 200 ms, 90-10% step response
- :
- Uncertainty ±0.1% of RDG
- Field Configurable:
- :
- Digital I/O (Optional):
- 6 independent channels
- :
- 0…30 Volts as input
- :
- De-bounce
- :
- 0…5V, TTL, 200 ms 90…10% step response, driving <0.1 uF
- Relay Outputs:
- 2 Form C mechanical
- :
- Isolated coil drivers
- :
- Over-voltage, transient and reverse polarity protected
- RS-485 Communications:
- 4-wire interface/half duplex
- :
- Over-voltage/ESD Protection:
- :
- Isolated from power ground:
- USB Communications:
- USB host interface (A connector)
- :
- USB device interface (mini B connector):
- :
- Over-voltage/ESD/transient protected:
- Display/User interface:
- Membrane keypad / domed tactile response
- :
- 128 √ó 64 pixel backlit graphical display:
- :
- Protected from EMI/ RFI:
- :
- Keypad interface is protected from ESD:
- Flow Calculation:
- ±0.01% uncertainty
- Pollution Degree:
- 2
- Altitude Restriction:
- Up to 2000 m (6561 ft)
- Over-Voltage Rating:
- Category II
- Operator Functions:
- Unlatch Relays, Reset Totalizer, Unlatch Relays and Reset Totalizer, Inhibit Flow Channels
- :
- Flow Rate, Total, Flow Rate and Total
- Flow Rate Only:
- second (S), minute (M), hour (H), day (D)
- Temperature:
- Digits:
- 8 digits
- Units:
- ‚Ñâ (Fahrenheit),‚ÑÉ (Celsius), °R (Rankine), or °K (Kelvin)
- Decimals:
- 0...4
product series features
- Clamp-on, non-invasive flow meter
- Bidirectional flow measurement system
- Measures flow rate, total and velocity of water flow
- Compact enclosure uses large, easy-to-read graphical display
more information & related documents
Series Description

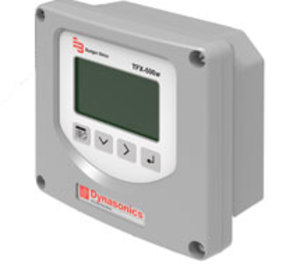

The Badger Meter® TFX-500W Series Transit Time Ultrasonic Flow Meter measures volumetric flow of clean water in pipes 10 in. or smaller. By clamping on the outside of the pipe, the ultrasonic meter installs without cutting or tapping the pipe. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
FLOW METER ULTRASONIC MED PIPE SUBDTTN 150FTCABLE
Manufacturer
Badger Meter
Related Documents
Badger TFX500 Install Manual Badger TFX500W Data Sheet Badger TFX500 Small Pipe Transit Time Ultrasonic Transducers Standard and High Temperature Dtts-c Install Manual Badger TFX500 Standard and High Temperature Transducers for Remote Standard and Large Pipes dtth-l-n-r Install Manual Badger Dynasonics TFXL to TFX-500W Migration Application Brief
