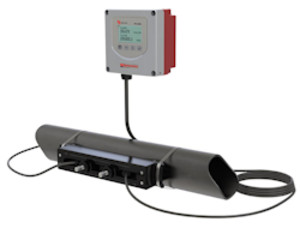

* product series image displayed

DR-G-XX-B-S-WW-WW-X-WW-SXXSGRF | Badger Meter | Flow

BTU METER, 24VAC/VDC, KEYPAD, MODBUS OR BACNET MS/TP

Brand:Badger Meter

MPN:DR-G-XX-B-S-WW-WW-X-WW-SXXSGRF

SKU:DR-G-XX-B-S-WW-WW-X-WW-SXXSGRF

List Price:

$9,061.00

Today's Price:

$4,711.72

Lead time of 15 days. Chat with Kele experts now

product specifications

Type

BTU Meter

Supply Voltage (Nominal)

24 VAC,24 VDC

Max Temperature

140 °F

product series specifications

System: Most clean liquids or liquids containing small amounts of suspended solids or gas bubbles

Flow Accuracy:

Medium and Large Pipes (RZ, NZ, WZ, HZ, LZ, YZ, JZ, KZ): ± 0.5% ± 0 0.049 ft/s (0.015 m/s) 

Small Pipes (CA-CT, UZ): 1 in. (25 mm) and larger = ±1% ± 0.03 ft/s (0.009 m/s) 3/4 in. (20 mm) and smaller = ±1% of full scale

Repeatability: 0.2% above 1.5 ft/s

Velocity Medium and Large Pipes: Up to 40 ft/s, depending on pipe and fluid

Small Pipes: Up to 20 ft/s, depending on pipe and fluid

Straight Run Requirements: 10 diameters upstream, 5 diameters downstream from single elbow

See Datasheet for more information*

product series features

Large, bi-directional flow measuring range
Data log up to 8 records
Modbus® RTU or BACnet® MS/TP over EIA-485; Modbus TCP/IP; BACnet/IP; AquaCUE®/BEACON® connectivity
Configure and troubleshoot over USB with SoloCUE
Reynolds, ultrasonic speed and temperature compensation
Large, easy-to-read graphical display
Rugged, aluminum enclosure for a long service life in harsh environments

more information & related documents

Series Description

The TFX-5000 transit time ultrasonic flow meter measures volumetric flow and heating/cooling energy rates in clean liquids as well as those with small amounts of suspended solids or aeration, such as surface water or raw sewage.TFX-5000 flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid.

Kele Description

BTU METER, 24VAC/VDC, KEYPAD, MODBUS OR BACNET MS/TP

Manufacturer

Badger Meter
