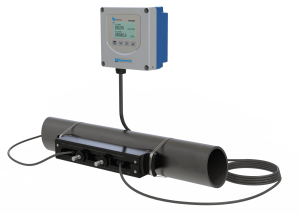

68898-002 | Badger Meter | Flow

System: Most clean liquids or liquids containing small amounts of suspended solids or gas bubbles

Flow Accuracy:

Medium and Large Pipes (RZ, NZ, WZ, HZ, LZ, YZ, JZ, KZ): ± 0.5% ± 0 0.049 ft/s (0.015 m/s)


Small Pipes (CA-CT, UZ): 1 in. (25 mm) and larger = ±1% ± 0.03 ft/s (0.009 m/s) 3/4 in. (20 mm) and smaller = ±1% of full scale

Repeatability: 0.2% above 1.5 ft/s

Velocity
 Medium and Large Pipes:Up to 40 ft/s, depending on pipe and fluid

Small Pipes: Up to 20 ft/s, depending on pipe and fluid

Straight Run Requirements: 10 diameters upstream, 5 diameters downstream from single elbow

See Datasheet for more information*
