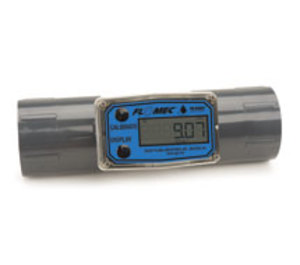

* product family image displayed
TM30NQ9GMD | Great Plains Industries | Flow
WATER METER PVC 3" FNPT LDISP
Manufacturer:Great Plains Industries
MPN:TM30NQ9GMD
SKU:TM30NQ9GMD
List Price:
$2,889.71
Today's Price:
$1,502.65
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
product family specifications
- Accuracy (% of Reading):
- ±3.0%
- Meter Sizes :
- 1/2″, 3/4″, 1″, 1 1/2″, 2″, 3″ 4″
- Flow Range:
- :
- 1/2″ 1-10 GPM (3.8-37.9 LPM)
- :
- 3/4″ 2-20 GPM (7.6-75.7 LPM)
- :
- 1″ 5-50 GPM (18.9-190 LPM)
- :
- 1-1/2″ 10-100 GPM (38.0-380 LPM)
- :
- 2″ 20-200 GPM (76-760 LPM)
- :
- 3″ 40-400 GPM (151-1514 LPM)
- :
- 3″ Extended Range 30-600 GPM (131-2271 LPM)
- :
- 4″ 60-600 GPM (227-2271 LPM)
- :
- 4″ Extended Range 40-800 GPM (151-3028 LPM)
- Fitting Type:
- NPT (Female)
- :
- Schedule 80 Spigot (Pipe) End
- :
- BSPP (Female) (1″, 1 1/2″, 2″, 3″ & 4″ meters only)
- :
- 150# ANSI Flange or DIN 100 Flange (3″ & 4″ meters only)
- Operating Temperature :
- :
- +32 to +140‚Ñâ (0 to +60‚ÑÉ)
- Pressure Rating:
- :
- 1/2″-2″ 225 PSI / 15.3 BAR @ 73℉ (23℃)
- :
- BSP 150 PSI / 10.3 BAR @ 73‚Ñâ (23‚ÑÉ)
- :
- 3″-4″ 225 PSI / 15.3 BAR @ 73℉ (23℃)
- :
- DIN 135 PSI / 9.1 BAR @ 73‚Ñâ (23‚ÑÉ)
- :
- For CE Applications 135 PSI / 9.1 BAR @ 73‚Ñâ (23‚ÑÉ)
- Typical K-Factor:
- :
- 1/2″ 2,500 PPG / 660 PPL
- :
- 3/4″ 1,100 PPG / 291 PPL
- :
- 1″ 565 PPG / 149 PPL
- :
- 1 1/2″ 215 PPG / 57 PPL
- :
- 2″ 100 PPG / 26 PPL
- :
- 3″ 43 PPG / 11 PPL
- :
- 4″ 17 PPG / 4.5 PPL
- Wetted Materials 1/2″-2″:
- :
- Housing PVC
- :
- Bearings Ceramic
- :
- Shaft Tungsten Carbide
- :
- Rotor PVDF
- :
- Rings 316 Stainless Steel
- Wetted Materials 3″-4″:
- :
- Housing PVC
- :
- Bearings PEEK
- :
- Shaft & Thrust Washers Stainless Steel
- :
- Rotor & Nose Cone Acetal
- :
- Signal Generator Ferrite
- Calibration Report:
- Comes standard with P (Pulse out) TM models
- :
- N.I.S.T. - Certification available
- Approvals:
- CE
- Warranty:
- 5 years
- *At the end of Extended Flow Range accuracy may decrease. Damage to the meter may occur if running at high Extended Range.:
- ** PVC pressure rating will incrementally decrease above 73‚Ñâ (23‚ÑÉ).:
product family features
Easy to install,Displays in gallons, litres and cubic feet,Indicates Batch, cumulative Totals and Rate of Flow,Available in NPT, BSPP, Spigot and Flange (3 in. and 4 in. only) Fittings,Non-volatile totals means amounts are retained when batteries are replaced or power is lost,Lithium battery life: 5 years
more information & related documents
Family Description
FLOMEC® TM Series Water Meters are accurate, economical and designed to last. Choose TM Water Meters for water processing and irrigation application. This water meter meets schedule 80 PVC specifications, standard low-profile display, seven sizes with three fitting types available and flowrates from 1 to 800 gallons per minute.
Kele Description
WATER METER PVC 3" FNPT LDISP
Manufacturer
Great Plains Industries
