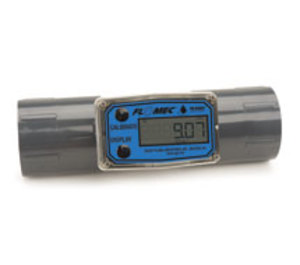

TM30DP9GME | Great Plains Industries | Flow
WATER METER PVC 3" FLANGE SPULSE
Brand:Great Plains Industries
MPN:TM30DP9GME
SKU:TM30DP9GME
product specifications
Accuracy
3%
Type
Inline Flow Meter
Pipe Size
3 in
Max Temperature
140 °F
product series specifications
- Accuracy (% of Reading):
- ±3.0%
- Meter Sizes :
- 1/2‚Ä=, 3/4‚Ä=, 1‚Ä=, 1 1/2‚Ä=, 2‚Ä=, 3‚Ä= 4‚Ä=
- Flow Range:
- :
- 1/2‚Ä= 1-10 GPM (3.8-37.9 LPM)
- :
- 3/4‚Ä= 2-20 GPM (7.6-75.7 LPM)
- :
- 1‚Ä= 5-50 GPM (18.9-190 LPM)
- :
- 1-1/2‚Ä= 10-100 GPM (38.0-380 LPM)
- :
- 2‚Ä= 20-200 GPM (76-760 LPM)
- :
- 3‚Ä= 40-400 GPM (151-1514 LPM)
- :
- 3‚Ä= Extended Range 30-600 GPM (131-2271 LPM)
- :
- 4‚Ä= 60-600 GPM (227-2271 LPM)
- :
- 4‚Ä= Extended Range 40-800 GPM (151-3028 LPM)
- Fitting Type:
- NPT (Female)
- :
- Schedule 80 Spigot (Pipe) End
- :
- BSPP (Female) (1‚Ä=, 1 1/2‚Ä=, 2‚Ä=, 3‚Ä= & 4‚Ä= meters only)
- :
- 150# ANSI Flange or DIN 100 Flange (3‚Ä= & 4‚Ä= meters only)
- Operating Temperature :
- :
- +32 to +140‚Ñâ (0 to +60‚ÑÉ)
- Pressure Rating:
- :
- 1/2‚Ä=-2‚Ä= 225 PSI / 15.3 BAR @ 73‚Ñâ (23‚ÑÉ)
- :
- BSP 150 PSI / 10.3 BAR @ 73‚Ñâ (23‚ÑÉ)
- :
- 3‚Ä=-4‚Ä= 225 PSI / 15.3 BAR @ 73‚Ñâ (23‚ÑÉ)
- :
- DIN 135 PSI / 9.1 BAR @ 73‚Ñâ (23‚ÑÉ)
- :
- For CE Applications 135 PSI / 9.1 BAR @ 73‚Ñâ (23‚ÑÉ)
- Typical K-Factor:
- :
- 1/2‚Ä= 2,500 PPG / 660 PPL
- :
- 3/4‚Ä= 1,100 PPG / 291 PPL
- :
- 1‚Ä= 565 PPG / 149 PPL
- :
- 1 1/2‚Ä= 215 PPG / 57 PPL
- :
- 2‚Ä= 100 PPG / 26 PPL
- :
- 3‚Ä= 43 PPG / 11 PPL
- :
- 4‚Ä= 17 PPG / 4.5 PPL
- Wetted Materials 1/2‚Ä=-2‚Ä=:
- :
- Housing PVC
- :
- Bearings Ceramic
- :
- Shaft Tungsten Carbide
- :
- Rotor PVDF
- :
- Rings 316 Stainless Steel
- Wetted Materials 3‚Ä=-4‚Ä=:
- :
- Housing PVC
- :
- Bearings PEEK
- :
- Shaft & Thrust Washers Stainless Steel
- :
- Rotor & Nose Cone Acetal
- :
- Signal Generator Ferrite
- Calibration Report:
- Comes standard with P (Pulse out) TM models
- :
- N.I.S.T. - Certification available
- Approvals:
- CE
- Warranty:
- 5 years
- *At the end of Extended Flow Range accuracy may decrease. Damage to the meter may occur if running at high Extended Range.:
- ** PVC pressure rating will incrementally decrease above 73‚Ñâ (23‚ÑÉ).:
product series features
- Easy to install
- Displays in gallons, litres and cubic feet
- Indicates Batch, cumulative Totals and Rate of Flow
- Available in NPT, BSPP, Spigot and Flange (3 in. and 4 in. only) Fittings
- Non-volatile totals means amounts are retained when batteries are replaced or power is lost
- Lithium battery life: 5 years
more information & related documents
Series Description
FLOMEC® TM Series Water Meters are accurate, economical and designed to last. Choose TM Water Meters for water processing and irrigation application. This water meter meets schedule 80 PVC specifications, standard low-profile display, seven sizes with three fitting types available and flowrates from 1 to 800 gallons per minute.
Kele Description
WATER METER PVC 3" FLANGE SPULSE
Manufacturer
Great Plains Industries
