TM20XR9GMA

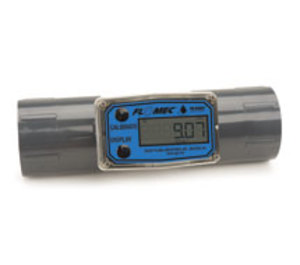

* product series image displayed

TM20XR9GMA | Great Plains Industries | Flow

KIT, COMPUTER ASSY 2" PVC

Brand:Great Plains Industries

MPN:TM20XR9GMA

SKU:TM20XR9GMA

List Price:

$-.--

Today's Price:

$-.--



Lead time of days. Chat with Kele experts now

product specifications

Accuracy

3%

Type

Inline Flow Meter

Pipe Size

2 in

Max Temperature

140 °F

product series specifications

    Accuracy (% of Reading):
  • ±3.0%
    Meter Sizes :
  • 1/2‚Ä=, 3/4‚Ä=, 1‚Ä=, 1 1/2‚Ä=, 2‚Ä=, 3‚Ä= 4‚Ä=
    Flow Range:
    :
  • 1/2‚Ä= 1-10 GPM (3.8-37.9 LPM)
    :
  • 3/4‚Ä= 2-20 GPM (7.6-75.7 LPM)
    :
  • 1‚Ä= 5-50 GPM (18.9-190 LPM)
    :
  • 1-1/2‚Ä= 10-100 GPM (38.0-380 LPM)
    :
  • 2‚Ä= 20-200 GPM (76-760 LPM)
    :
  • 3‚Ä= 40-400 GPM (151-1514 LPM)
    :
  • 3‚Ä= Extended Range 30-600 GPM (131-2271 LPM)
    :
  • 4‚Ä= 60-600 GPM (227-2271 LPM)
    :
  • 4‚Ä= Extended Range 40-800 GPM (151-3028 LPM)
    Fitting Type:
  • NPT (Female)
    :
  • Schedule 80 Spigot (Pipe) End
    :
  • BSPP (Female) (1‚Ä=, 1 1/2‚Ä=, 2‚Ä=, 3‚Ä= & 4‚Ä= meters only)
    :
  • 150# ANSI Flange or DIN 100 Flange (3‚Ä= & 4‚Ä= meters only)
    Operating Temperature :
    :
  • +32 to +140‚Ñâ (0 to +60‚ÑÉ)
    Pressure Rating:
    :
  • 1/2‚Ä=-2‚Ä= 225 PSI / 15.3 BAR @ 73‚Ñâ (23‚ÑÉ)
    :
  • BSP 150 PSI / 10.3 BAR @ 73‚Ñâ (23‚ÑÉ)
    :
  • 3‚Ä=-4‚Ä= 225 PSI / 15.3 BAR @ 73‚Ñâ (23‚ÑÉ)
    :
  • DIN 135 PSI / 9.1 BAR @ 73‚Ñâ (23‚ÑÉ)
    :
  • For CE Applications 135 PSI / 9.1 BAR @ 73‚Ñâ (23‚ÑÉ)
    Typical K-Factor:
    :
  • 1/2‚Ä= 2,500 PPG / 660 PPL
    :
  • 3/4‚Ä= 1,100 PPG / 291 PPL
    :
  • 1‚Ä= 565 PPG / 149 PPL
    :
  • 1 1/2‚Ä= 215 PPG / 57 PPL
    :
  • 2‚Ä= 100 PPG / 26 PPL
    :
  • 3‚Ä= 43 PPG / 11 PPL
    :
  • 4‚Ä= 17 PPG / 4.5 PPL
    Wetted Materials 1/2‚Ä=-2‚Ä=:
    :
  • Housing PVC
    :
  • Bearings Ceramic
    :
  • Shaft Tungsten Carbide
    :
  • Rotor PVDF
    :
  • Rings 316 Stainless Steel
    Wetted Materials 3‚Ä=-4‚Ä=:
    :
  • Housing PVC
    :
  • Bearings PEEK
    :
  • Shaft & Thrust Washers Stainless Steel
    :
  • Rotor & Nose Cone Acetal
    :
  • Signal Generator Ferrite
    Calibration Report:
  • Comes standard with P (Pulse out) TM models
    :
  • N.I.S.T. - Certification available
    Approvals:
  • CE
    Warranty:
  • 5 years
    *At the end of Extended Flow Range accuracy may decrease. Damage to the meter may occur if running at high Extended Range.:
    ** PVC pressure rating will incrementally decrease above 73‚Ñâ (23‚ÑÉ).:

product series features

  • Easy to install
  • Displays in gallons, litres and cubic feet
  • Indicates Batch, cumulative Totals and Rate of Flow
  • Available in NPT, BSPP, Spigot and Flange (3 in. and 4 in. only) Fittings
  • Non-volatile totals means amounts are retained when batteries are replaced or power is lost
  • Lithium battery life: 5 years

more information & related documents

Series Description

FLOMEC® TM Series Water Meters are accurate, economical and designed to last. Choose TM Water Meters for water processing and irrigation application. This water meter meets schedule 80 PVC specifications, standard low-profile display, seven sizes with three fitting types available and flowrates from 1 to 800 gallons per minute.

Kele Description

KIT, COMPUTER ASSY 2" PVC

Manufacturer

Great Plains Industries
