TM20NP9GMC

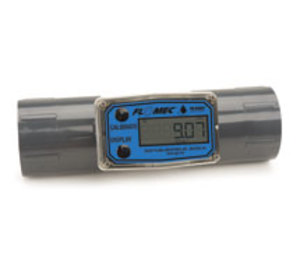

* product series image displayed

TM20NP9GMC | Great Plains Industries | Flow

WATER METER PVC 2" FNPT LDISP-PO

Brand:Great Plains Industries

MPN:TM20NP9GMC

SKU:TM20NP9GMC

List Price:

$2,759.00

Today's Price:

$1,434.68



Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accuracy

3%

Type

PVC

Pipe Size

2 in

Max Temperature

140 °F

product series specifications

    Accuracy (% of Reading):
  • ±3.0%
    Meter Sizes :
  • 1/2‚Ä=, 3/4‚Ä=, 1‚Ä=, 1 1/2‚Ä=, 2‚Ä=, 3‚Ä= 4‚Ä=
    Flow Range:
    :
  • 1/2‚Ä= 1-10 GPM (3.8-37.9 LPM)
    :
  • 3/4‚Ä= 2-20 GPM (7.6-75.7 LPM)
    :
  • 1‚Ä= 5-50 GPM (18.9-190 LPM)
    :
  • 1-1/2‚Ä= 10-100 GPM (38.0-380 LPM)
    :
  • 2‚Ä= 20-200 GPM (76-760 LPM)
    :
  • 3‚Ä= 40-400 GPM (151-1514 LPM)
    :
  • 3‚Ä= Extended Range 30-600 GPM (131-2271 LPM)
    :
  • 4‚Ä= 60-600 GPM (227-2271 LPM)
    :
  • 4‚Ä= Extended Range 40-800 GPM (151-3028 LPM)
    Fitting Type:
  • NPT (Female)
    :
  • Schedule 80 Spigot (Pipe) End
    :
  • BSPP (Female) (1‚Ä=, 1 1/2‚Ä=, 2‚Ä=, 3‚Ä= & 4‚Ä= meters only)
    :
  • 150# ANSI Flange or DIN 100 Flange (3‚Ä= & 4‚Ä= meters only)
    Operating Temperature :
    :
  • +32 to +140‚Ñâ (0 to +60‚ÑÉ)
    Pressure Rating:
    :
  • 1/2‚Ä=-2‚Ä= 225 PSI / 15.3 BAR @ 73‚Ñâ (23‚ÑÉ)
    :
  • BSP 150 PSI / 10.3 BAR @ 73‚Ñâ (23‚ÑÉ)
    :
  • 3‚Ä=-4‚Ä= 225 PSI / 15.3 BAR @ 73‚Ñâ (23‚ÑÉ)
    :
  • DIN 135 PSI / 9.1 BAR @ 73‚Ñâ (23‚ÑÉ)
    :
  • For CE Applications 135 PSI / 9.1 BAR @ 73‚Ñâ (23‚ÑÉ)
    Typical K-Factor:
    :
  • 1/2‚Ä= 2,500 PPG / 660 PPL
    :
  • 3/4‚Ä= 1,100 PPG / 291 PPL
    :
  • 1‚Ä= 565 PPG / 149 PPL
    :
  • 1 1/2‚Ä= 215 PPG / 57 PPL
    :
  • 2‚Ä= 100 PPG / 26 PPL
    :
  • 3‚Ä= 43 PPG / 11 PPL
    :
  • 4‚Ä= 17 PPG / 4.5 PPL
    Wetted Materials 1/2‚Ä=-2‚Ä=:
    :
  • Housing PVC
    :
  • Bearings Ceramic
    :
  • Shaft Tungsten Carbide
    :
  • Rotor PVDF
    :
  • Rings 316 Stainless Steel
    Wetted Materials 3‚Ä=-4‚Ä=:
    :
  • Housing PVC
    :
  • Bearings PEEK
    :
  • Shaft & Thrust Washers Stainless Steel
    :
  • Rotor & Nose Cone Acetal
    :
  • Signal Generator Ferrite
    Calibration Report:
  • Comes standard with P (Pulse out) TM models
    :
  • N.I.S.T. - Certification available
    Approvals:
  • CE
    Warranty:
  • 5 years
    *At the end of Extended Flow Range accuracy may decrease. Damage to the meter may occur if running at high Extended Range.:
    ** PVC pressure rating will incrementally decrease above 73‚Ñâ (23‚ÑÉ).:

product series features

  • Easy to install
  • Displays in gallons, litres and cubic feet
  • Indicates Batch, cumulative Totals and Rate of Flow
  • Available in NPT, BSPP, Spigot and Flange (3 in. and 4 in. only) Fittings
  • Non-volatile totals means amounts are retained when batteries are replaced or power is lost
  • Lithium battery life: 5 years

more information & related documents

Series Description

FLOMEC® TM Series Water Meters are accurate, economical and designed to last. Choose TM Water Meters for water processing and irrigation application. This water meter meets schedule 80 PVC specifications, standard low-profile display, seven sizes with three fitting types available and flowrates from 1 to 800 gallons per minute.

Kele Description

WATER METER PVC 2" FNPT LDISP-PO

Manufacturer

Great Plains Industries
