TM05SXXXXA | Great Plains Industries | Flow

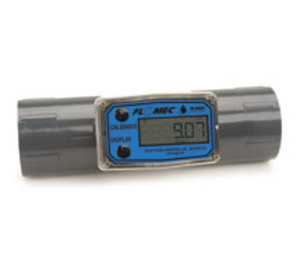

KIT, TURBINE ASSEMBLY 1/2" PVC
Manufacturer:Great Plains Industries
MPN:TM05SXXXXA
SKU:TM05SXXXXA
List Price:
$416.15
Today's Price:
$216.40
product family specifications
Accuracy (% of Reading)
±3.0%
Meter Sizes
1/2″, 3/4″, 1″, 1 1/2″, 2″, 3″ 4″
Flow Range
1/2″ 1-10 GPM (3.8-37.9 LPM)
3/4″ 2-20 GPM (7.6-75.7 LPM)
1″ 5-50 GPM (18.9-190 LPM)
1-1/2″ 10-100 GPM (38.0-380 LPM)
2″ 20-200 GPM (76-760 LPM)
3″ 40-400 GPM (151-1514 LPM)
3″ Extended Range 30-600 GPM (131-2271 LPM)
4″ 60-600 GPM (227-2271 LPM)
4″ Extended Range 40-800 GPM (151-3028 LPM)
Fitting Type
NPT (Female)
Schedule 80 Spigot (Pipe) End
BSPP (Female) (1″, 1 1/2″, 2″, 3″ & 4″ meters only)
150# ANSI Flange or DIN 100 Flange (3″ & 4″ meters only)
Operating Temperature
+32 to +140℉ (0 to +60℃)
Pressure Rating
1/2″-2″ 225 PSI / 15.3 BAR @ 73℉ (23℃)
BSP 150 PSI / 10.3 BAR @ 73℉ (23℃)
3″-4″ 225 PSI / 15.3 BAR @ 73℉ (23℃)
DIN 135 PSI / 9.1 BAR @ 73℉ (23℃)
For CE Applications 135 PSI / 9.1 BAR @ 73℉ (23℃)
Typical K-Factor
1/2″ 2,500 PPG / 660 PPL
3/4″ 1,100 PPG / 291 PPL
1″ 565 PPG / 149 PPL
1 1/2″ 215 PPG / 57 PPL
2″ 100 PPG / 26 PPL
3″ 43 PPG / 11 PPL
4″ 17 PPG / 4.5 PPL
Wetted Materials 1/2″-2″
Housing PVC
Bearings Ceramic
Shaft Tungsten Carbide
Rotor PVDF
Rings 316 Stainless Steel
Wetted Materials 3″-4″
Housing PVC
Bearings PEEK
Shaft & Thrust Washers Stainless Steel
Rotor & Nose Cone Acetal
Signal Generator Ferrite
Calibration Report
Comes standard with P (Pulse out) TM models
N.I.S.T. - Certification available
Approvals
CE
Warranty
5 years
*At the end of Extended Flow Range accuracy may decrease. Damage to the meter may occur if running at high Extended Range.
** PVC pressure rating will incrementally decrease above 73℉ (23℃).
product family features
- Easy to install
- Displays in gallons, litres and cubic feet
- Indicates Batch, cumulative Totals and Rate of Flow
- Available in NPT, BSPP, Spigot and Flange (3″ & 4″ only) Fittings
- Non-volatile totals means amounts are retained when batteries are replaced or power is lost
- Lithium battery life: 5 years
more information & related documents
Family Description
FLOMEC® TM Series Water Meters are accurate, economical and designed to last. Choose TM Water Meters for water processing and irrigation application. This water meter meets schedule 80 PVC specifications, standard low-profile display, seven sizes with three fitting types available and flowrates from 1 to 800 gallons per minute.
Kele Description
KIT, TURBINE ASSEMBLY 1/2" PVC
Manufacturer
Great Plains Industries
