G2S15TQ9GMB | Great Plains Industries | Flow

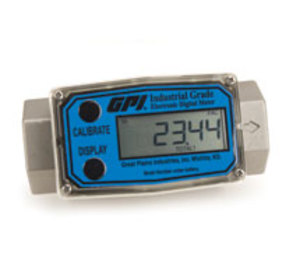

TURBINE METER 1 1/2" SS SCLAMP LDISP
Brand:Great Plains Industries
MPN:G2S15TQ9GMB
SKU:G2S15TQ9GMB
product specifications
Max Pressure
1,500 psi
Type
Inline Flow Meter
Accuracy
1%
Pipe Size
1-1/2 in
Max Temperature
250 °F
product series specifications
Accuracy (% of Reading):
1/2" Turbine Only ± 2.0%; Turbine w/Display ± 1.5%
3/4" Turbine Only ± 1.5%; Turbine w/Display ± 1.0%
1" Turbine Only ± 1.5%; Turbine w/Display ± 1.0%
1-1/2" Turbine Only ± 1.0%; Turbine w/Display ± 0.75%
2" Turbine Only ± 1.0%; Turbine w/Display ± 0.75%
Meter Sizes: 1/2", 3/4", 1", 1 1/2", 2"
Flow Range:
1/2" 1-10 GPM (3.8-37.9 LPM)
1/2" PVDF Only 1.2-12 GPM (4.54-45.42 LPM)
3/ 4" 2-20 GPM (7.6-75.7 LPM)
1" 5-50 GPM (18.9-190 LPM)
1-1/2" 10-100 GPM (38.0-380 LPM)
2" 20-200 GPM (76-760 LPM)
Fitting Type: NPT (Female)
Repeatability: ± 0.1% (PVDF is ± 0.3%)
Operating Temperature:
Range -40 to +250°F (-40 to +121°C)
PVDF -20 to +180°F (-28 to +82°C)
with Display -0 to +140°F (-18 to +60°C)
Pressure Rating:
316 Stainless Steel 1,500 PSI / 102 BAR, PVDF 100 PSI / 6.9 BAR
Materials of Construction: 316 Stainless Steel, PVDF
Approvals: CE, FM, ATEX EX, NEMA 4, IP65, IECEx
Warranty: 5 year
product series features
- Accuracy ± 0.75% to ± 2.0% (dependent on meter selection)
- Meter designed for thin fluids (less than 100 Centipoise)
- Modular design allows for use with Output Modules, Sensors and Remote Transmitters
- Two button display has two Totals (Batch = Resettable, Cumulative = Non resettable); Rate of Flow, Factory calibrated in gallons and litres; Field calibratable; includes non-volatile totals
- Internal parts simple to replace for easy maintenance
- Lithium battery life: 5 years (Battery is replaceable part #113520-1)
more information & related documents
Series Description
A full line of brass and stainless steel FLOMEC® G2 Series Precision Turbine Meters are available in variety of housing materials of fitting types. These rugged, dependable meters offer high accuracy in a self-contained design that is field serviceable.
Kele Description
TURBINE METER 1 1/2" SS SCLAMP LDISP
Manufacturer
Great Plains Industries
