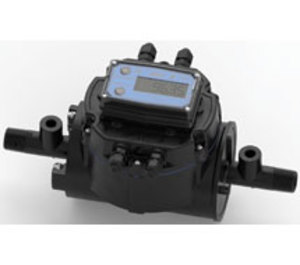

QSE05NPTQ9XXXA | Great Plains Industries | Flow

Accuracy (% of Reading): ±2.0%

1/2" 0.15-0.6 GPM (0.56-2.27 LPM)

3/4" 0.3-1.2 GPM (0.56-4.54 LPM)

1” 0.6-2.4 GPM (2.27-9.08 LPM)

1-1/2" 1.2-4.8 GPM (4.54-18.17 LPM)

2" 2.25-9.0 GPM (8.5-34.07 LPM)

3" 4.5-18.0 GPM (17-68.14 LPM)

4" 9-36.0 GPM (34-136.28 LPM)

Accuracy (% of Reading): ±5.0%

1/2" 0.61-10 GPM (2.28-38 LPM)

3/4" 1.21-20 GPM (4.55-76 LPM)

1" 2.41-40 GPM (9.09-151 LPM)

1-1/2" 4.81-80 GPM (18.18-303 LPM)

2" 9.01-150 GPM (34.08-568 LPM)

3" 18.01-300 GPM (68.15-1136 LPM)

4" 36.01-600 GPM (136.29-2271 LPM)

Meter Sizes: 1/2", 3/4", 1", 1 1/2", 2", 3", 4"

Housing Material:Noryl®

Flow Range: 0.25 to 15 FPS

1/2" 0.15-10 GPM (0.56-38 LPM)

3/4" 0.3-20 GPM (1.13-76 LPM)

1" 0.6-40 GPM (2.27-151 LPM)

1-1/2" 1.2-80 GPM (4.54-303 LPM)

2" 2.25-150 GPM (8.5-568 LPM)

3" 4.5-300 GPM (17-1136 LPM)

4" 9-600 GPM (34-2271 LPM)

Fitting Type: NPT, BSP, ANSI Flanged, DIN Flanged

1/2" - 2" - NPT (Male), BSP (Male) (Rc Thread)

3” & 4" ANSI Flanged - Polymer Flange

3” & 4" ANSI Flanged - Steel Flange

3” & 4" DIN Flanged - Steel Flange

Operating Temperature Range: 1/2" - 2": 32°F to 210°F (0 to 99°C):

Ambient Temperature Range: 3" - 4": 32°Fto 180°F (0 to 82°C)

Pressure Rating: 150 PSI @ 73°F (10 BAR @ 23°C)

Typical K-Factor:

1/2" 4347 PPG (1158.5 PPL)

3/4" 1937 PPG (551.8 PPL)

1" 1089 PPG (287.7 PPL)

1 1/2" 484.1 PPG (127.9 PPL)

2" 400 PPG (105.7 PPL)

3" 121 PPG (32.0 PPL)

4" 68.1 PPG (18.0 PPL)

Power Supply:Externally powered

Voltage Supply (Min): 12VDC or VAC

Voltage Supply (Max): 36VDC or VAC

Consumption: Max current consumption (QSE with QSB): 75mA

Max current consumption (QSE with QSI): 150mA

Wetted Materials:

Body Noryl®

Electrodes 316L SS

Seals NBR O-Rings

Frequency Range (All Sizes):

10 Hz Minimum - 1,000 Hz Maximum (with 09 Display)

10 Hz Minimum -3,000 Hz Maximum (with Blind Pulse Out)

Calibration Report: Standard

N.I.S.T. Available

Approvals: CE, NEMA 6P, IP68

Warranty: 5 years
