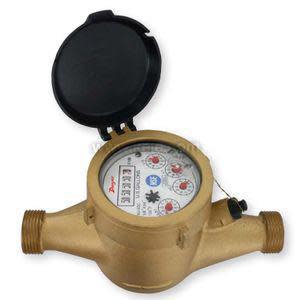

Compact brass body with two threaded ends and internal flow chamber

WNT-A-C-07-1 | Dwyer Instruments | Flow

Multi-Jet Water Meter, 1-1/2" Pipe Size, NSF Certified, Brass Body With 1 Gallon Pulse Output

Brand:Dwyer Instruments

MPN:WNT-A-C-07-1

SKU:WNT-A-C-07-1

List Price:

$1,105.00

Today's Price:

$574.60

product datasheet

installation instructions

product specifications

Body Material

Brass

Media Compatibility

Potable Water

Measurement Range

5 - 100 GPM

Process Variable

Flow

Pipe Size

1-1/2 in

Supply Voltage (Nominal)

24 VAC,24 VDC

Max Temperature

122 °F

product series specifications

Service: Water

Wetted Materials:

Body: C87850 brass alloy (no lead, 75.5% copper, ECO-BRASS®

Couplings: C87850 brass alloy

Measuring chamber: ABS plastic

Accuracy: Transitional flow: ±3%; Nominal flow: ±1.5%

Temperature Limit: 122°F (50°C)

Pressure Limit: 150 psi (10 bar)

Output Signal: Pulse output with frequency proportional to flow rate

Pulse Options: 5/8” 1" (15 mm to 25 mm): 0.1-gal, 1 gal, 10-gal, 100 gal per pulse; 1-1/2‚" to 2" (40 mm to 50 mm): 1 gal, 10 gal, 100 gal per pulse

Electrical Rating: 0.01 A @ 24 VAC/DC

Electrical Connections: Color-coded lead wires, 4.5" (1.5 m) long; Pulse Emitter Device consists of plastic housing with Reed Switch

Mounting Orientation: Horizontal with the register face pointing up

Approvals: NSF

product series features

NSF/ANSI 61 certification makes it ideal for no lead requirements
Multi-jet design allows for simplicity and accuracy with side flow ranges, even in low flow applications
Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
Designed for long service life and maintenance-free operation
Integral strainer that protects meter from particulate damage
Easy installation with included coupling adapters
Pulsed output proportional to flow allows for remote flow totalization

more information & related documents

Series Description

The Dwyer WNT Series NSF-certified multi-jet water meters is a series of mechanical, water totalizing meters that display the total water usage in gallons or cubic meters. They are available in a range of body sizes and include NPT or BSPT couplings. The lead free, NSF-certified body is ideal for potable water applications. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

MULT JET NSF BRASS WATER METER 1-1/2", 1-1/2"NPT

Manufacturer

Dwyer Instruments
