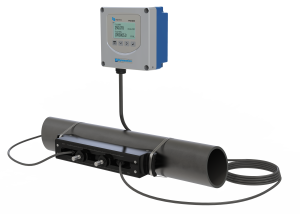

DQ-G-KZ-B-S-AF-WW-S-XX-9-G-F | Badger Meter | Flow

FLOW METER, 2.5IN TO 12IN EASY RAIL, 24VAC/VDC, KEYBOARD, 30FT XDCR PAIR, NO COMMUNICATION, GPM

Brand:Badger Meter

MPN:DQ-G-KZ-B-S-AF-WW-S-XX-9-G-F

SKU:DQ-G-KZ-B-S-AF-WW-S-XX-9-G-F

List Price:

$-.--

Today's Price:

$-.--

product specifications

Type

Ultrasonic Flow Meter

Pipe Size

2-1/2 - 12 in

Supply Voltage (Nominal)

24 VAC,24 VDC

Max Temperature

140 °F

product series specifications

System: Most clean liquids or liquids containing small amounts of suspended solids or gas bubbles

Flow Accuracy:

Medium and Large Pipes (RZ, NZ, WZ, HZ, LZ, YZ, JZ, KZ): ± 0.5% ± 0 0.049 ft/s (0.015 m/s) 

Small Pipes (CA-CT, UZ): 1 in. (25 mm) and larger = ±1% ± 0.03 ft/s (0.009 m/s) 3/4 in. (20 mm) and smaller = ±1% of full scale

Repeatability: 0.2% above 1.5 ft/s

Velocity  Medium and Large Pipes:Up to 40 ft/s, depending on pipe and fluid

Small Pipes: Up to 20 ft/s, depending on pipe and fluid

Straight Run Requirements: 10 diameters upstream, 5 diameters downstream from single elbow

See Datasheet for more information*

product series features

Large, bi-directional flow measuring range
Data log up to 8 records
Modbus® RTU or BACnet® MS/TP over EIA-485; Modbus TCP/IP; BACnet/IP; AquaCUE®/BEACON® connectivity
Configure and troubleshoot over USB with SoloCUE
Reynolds, ultrasonic speed and temperature compensation
Large, easy-to-read graphical display
Rugged, aluminum enclosure for a long service life in harsh environments

more information & related documents

Series Description

The TFX-5000 transit time ultrasonic flow meter measures volumetric flow and heating/cooling energy rates in clean liquids as well as those with small amounts of suspended solids or aeration, such as surface water or raw sewage.TFX-5000 flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid.

Kele Description

FLOW METER, 2.5IN TO 12IN EASY RAIL, 24VAC/VDC, KE

Manufacturer

Badger Meter
