FS-2-W8 | Dwyer Instruments | Flow

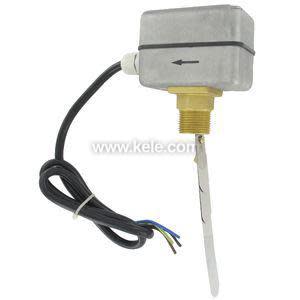

Paddle Flow Switch, 1 Male NPT Connection With 8 Ft Leads
Brand:Dwyer Instruments
MPN:FS-2-W8
SKU:FS-2-W8
List Price:
$185.00
Today's Price:
$96.20
product specifications
Type
Paddle Switch
Pipe Size
1-8 in
Max Pressure
145 PSI
Max Temperature
230 °F
product series specifications
- ††Compatible liquids
- Wetted Materials:
- †Bellow: Tin-bronze;†Vane: SS;††Body: Forged brass†
- Temperature Limit:
- †230?F (110?C)
- Pressure Limit:
- †145 psig (10 bar)
- Enclosure Rating:
- †NEMA 4 (IP64)
- Switch Type:
- †SPDT snap switch
- Electrical Rating:
- †10A res, 3A ind @†250 VAC†
- Electrical Connection:
- †Cable gland†with attached wire leads or optional†conduit connection†
- Process Connection:
- † 1Àù male NPT or†BSPT†
- Mounting Orientation:
- †Switch must be†installed vertically on horizontal pipe†runs†
- Set Point†Adjustment:
- †Four vane†combinations and an adjustment screw†
- Enclosure:
- †Die-cast aluminum alloy
- Weight:
- †28.22 oz (0.8 kg)
- Approvals:
- †CE
product series features
- Low cost
- Field Adjustable
- Custom set points
more information & related documents
Series Description
The Dwyer FS-2 Series vane flow switch offers an economical flow proving the solution. Custom setpoints tailored for the application are enabled by field adjustable vane layers and a setpoint adjustment screw. The FS-2 features an aluminum, weatherproof housing for outdoor installation. Paddles are adjustable to fit 1 in. €“ 8 in. size pipes. The FS-2 Series is ideal for use in 'flow or no flow' applications in cold and hot water systems. Perfect for proving flow in boilers, hot water heaters, and chillers.
Kele Description
PADDLE FLOW SWITCH, 1IN MALE NPT CONNECTION WITH 8FT LEADS
Manufacturer
Dwyer Instruments
