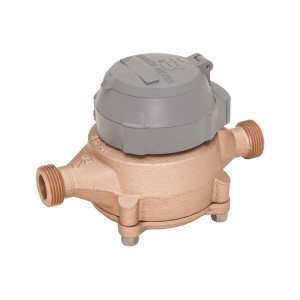

* product series image displayed

M70-100-L-L-S-C-HS-LT | Badger Meter | Flow

FE-KCC-1B2S-SCF4-Y2-E3CA-2A1X1-TAA-NN-XX-B1-XX-B0A

Brand:Badger Meter

MPN:M70-100-L-L-S-C-HS-LT

SKU:M70-100-L-L-S-C-HS-LT

List Price:

$3,488.00

Today's Price:

$1,813.76

catalog page

Lead time of 15 days. Chat with Kele experts now

product specifications

Type

Inline Flow Meter

Connection

Union Flange MNPT

Accuracy

Pipe Size

1 in

Supply Voltage (Nominal)

24 VAC

Max Temperature

250 °F

product series specifications

Accuracy: ±1.5%

Repeatability: ±0.5%

Pressure Range: up to 150 psi

Temperature Range: 32 to 250° F

product series features

Wide flow range
Rugged bronze or thermoplastic housing
Meters available up to 250° F
Easily maintained without removing from line
Durable components for minimal maintenance
Wide range of compatible accessories

more information & related documents

Series Description

The Badger Meter Recordall® (RCDL) positive displacement meters are one of the most cost effective methods in metering industrial fluids. The RCDL meter has a simple, efficient design for high accuracy and repeatability over the entire meter flow range. Available in sizes 1/2 to 2 in. for flows up to 170 gpm, these meters are extremely rugged and reliable. Maintenance is seldom required, but if necessary, takes only a few minutes. All parts are designed and built of materials that meet your application requirements and provide an enduring and a trouble-free, precision flow meter. To complement the RCDL meter line, Badger Meter offers a complete line of accessories that includes totalizers, transmitters, rate of flow indicators and batch/process controllers.

Kele Description

1" FLOW METER WITH 4-20MA AND PULSE REGISTER IN LITERS AND LCP CHAMBER

Manufacturer

Badger Meter
