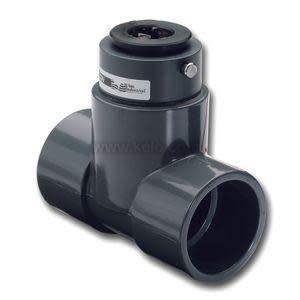

228PV2005-1211 | Badger Meter | Flow

Accuracy: ±1% of full scale

Velocity Range: 0.5 to 30 fps (0.15 to 9 mps)

Repeatability: ±0.3% of full scale

Linearity: ±0.2% of full scale

Connection Type: Schedule 80 PVC

Wiring: 20' (6.1 m), 20 AWG two-conductor shielded UL type PTLC cable, rated to 221°F (105°C), may be extended to 2000' maximum with similar cable

Pulse Rate: 3.2 to 200 Hz, 5 ms ±25% width, 9-20 VDC power @ 2 mA maximum; 5V CMOS and LSTTL compatible

Media Compatibility: Hot water, chilled water (verify application is compatible with flow sensor materials of construction, check material compatibility resources prior to ordering)

Media Temperature Range: Maximum 140°F (60°C)

Maximum Pressure: 100 psig (689 kPa) @ 77°F (25°C) media temperature, decreasing to 40 psig (276 kPa) @ 140°F (60°C)

Materials Of Construction: PVC per ASTM D-2462 and D-2467 virgin unplasticized PVC resin, approved for potable water, PPS housing, EPDM o-ring, tungsten shaft, nylon impeller, Pennlon bearings

Dimensions:

228PV1505 5.2"H x 5.0"W x 2.4"D (13.1 x 12.7 x 6.0 cm)

228PV2005 5.6"H x 5.6"W x 2.9"D (14.3 x 14.3 x 7.3 cm)

228PV3005 6.8"H x 6.5"W x 4.2"D (17.3 x 16.5 x 10.7 cm)

228PV4005 6.8"H x 7.4"W x 5.4"D (17.3 x 18.7 x 13.7 cm)

Weight:

228PV1505 1.0 lb (.45 kg)

228PV2005 1.0 lb (.45 kg)

228PV3005 1.5 lb (.68 kg)

228PV4005 2.5 lb (1.1 kg)

Approvals: CE

Warranty: 1 year
