228BR2005-1211 | Badger Meter | Flow

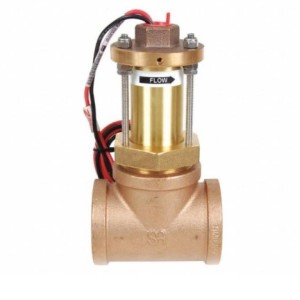

Flow Sensor 2 in. Brass Tee
Brand:Badger Meter
MPN:228BR2005-1211
SKU:228B-2
List Price:
$2,228.00
Today's Price:
$1,158.56
product specifications
Accuracy
1%
Type
Tee Mount
Pipe Size
2 in
Max Pressure
200 PSI
Max Temperature
221 °F
product series specifications
- Accuracy:
- ±1% of full scale
- Velocity Range:
- 0.5 to 30 fps (.15 to 9.0 mps)
- Repeatability:
- ±0.3% of full scale
- Linearity:
- ±0.2% of full scale
- Connection Type:
- :
- 228B 2‚Ä= FNPT and copper solder coupling included
- :
- 228C, 228SS 2" FNPT
- Wiring:
- 20' (6.1 m) 2-conductor 20 AWG shielded UL type PTLC wire, rated to 221‚Ñâ (105‚ÑÉ). May be extended to 2000' maximum with similar cable
- Media Compatibility:
- Hot water, chilled water, water/glycol (verify application is compatible with flow sensor materials of construction, check material compatibility resources prior to ordering)
- Media Temperature Range:
- Maximum 221‚Ñâ (105‚ÑÉ)
- Maximum Pressure:
- :
- 228B 200 psig (1379 kPa) @ 100‚Ñâ (37.8‚ÑÉ) media temperature
- :
- 228C 175 psig (1207 kPa) @ 100‚Ñâ (37.8‚ÑÉ) media temperature
- :
- 228SS 300 psig (2758 kPa) @ 100‚Ñâ (37.8‚ÑÉ) media temperature
- Materials Of Construction:
- :
- 228B Standard construction is cast bronze tee (Class 125 per ASME B16.15), copper couplings, admiralty brass UNS C44300 sleeve, glass-reinforced nylon impeller, PennlonÆ UHMWPE bearings, tungsten carbide shaft, glass reinforced PPS housing, and ethylene propylene EPDM o-rings (other materials available special order).
- :
- 228C Standard construction is cast iron tee (class 125 per ASME B16.4), admiralty brass UNS C44300 sleeve, glass-reinforced nylon impeller, PennlonÆ UHMWPE bearings, tungsten carbide shaft, glass reinforced PPS housing, and ethylene propylene EPDM o-rings (other materials available special order).
- :
- 228SS Standard construction is 316 stainless steel tee, 300 series SS sleeve, glass-reinforced nylon impeller, PennlonÆ UHMWPE bearings, tungsten carbide shaft, glass reinforced PPS housing, and ethylene propylene EPDM o-rings (other materials available special order).
- Dimensions:
- 8.4"H x 7.9"W x 3.0"D (21.3 x 20.0 x 7.6 cm)
- Weight:
- :
- 228B 8.8 lb (4.0 Kg)
- :
- 228C 7.2 lb (3.3 Kg)
- :
- 228SS 12.0 lb (5.4 Kg)
- Approvals:
- CE
- Warranty:
- 1 year
more information & related documents
Series Description
The 228B Tee-Mounted Flow Sensors are brass flow sensors mounted in a 2 in. bronze tee with 2 in. copper solder couplings included. The 228C Tee-Mounted Flow Sensor is a brass flow sensor mounted in a 2 in. cast iron tee. The 228SS Tee-Mounted Flow Sensor is a stainless steel flow sensor mounted in a 2 in. stainless steel tee. These flow sensors are popular choices for Building Automation Systems, BAS, and HVAC applications.
Kele Description
FLOW SENSOR 2IN BRASS TEE
Manufacturer
Badger Meter
