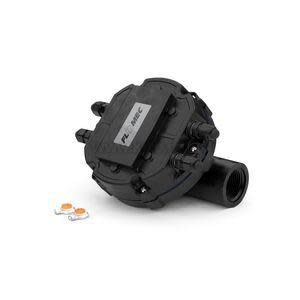

145506-05 | Great Plains Industries | Flow

Material:

Cover Plate: Polypropylene

Adapter: Polypropylene

Voltage:

Min to Max: 12-36VDC

Max Current: 125mA DC

Temperature:

Operating: 32°Fto 180°F(0°C to 82°C)

Output:

Pulse Output: Current sinking open collector Type rated to 30mA @ 36VDC max.

Pulse Output Units: Flow totalization in any predefined or custom unit. BTU in one pulse per KBTU.

Pulse Scaling: Customized by user

Analog Output: 4-20mA or 0-20mA

Communication:

Bluetooth®: Programming interface; supported on Android devices

RS485: Support for Modbus® RTU; support for BACnet®/MS TP available in subsequent releases

Temperature Sensor Type:Two 3 wire platinum 100 ohm RTDs (PT100)

Data Logger Features (Pending):10,000 data points; minimum time between data point 1 min; provides 1 week of data, or can be customized

Real Time Clock: Used to provide date and time stamp to data points in data log

Coin Cell Battery: Battery Backup for internal clock

Units:

Temperature: F and C

Totalization: Gallon, Liter, Imperial Gallon, Quart, Barrel, Cubic Centimeter, Cubic Meter, Ounces, Cubic Feet

Rate: Unit/Seconds, Unit/Minutes, Unit/Hours, Unit/Days

Energy Total: Btu, kBut, Mbtu, Wh, kWh, MWh, Joules, kJ, Ton

Energy Rate: All energy total units/day, units/hr., units/min or units/sec

Approvals: CE

Warranty: 5 years
