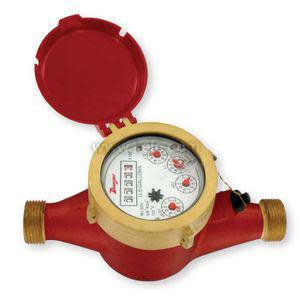

A brass and red cylindrical water meter with a circular display showing dials and numbers, protected by an open red lid, and threaded fittings on either side.

WMH-A-C-01 | Dwyer Instruments | Flow

Multi-Jet Hot Water Meter, 5/8" X 1/2" Pipe Size, 0.1 Gallons Pulse Output

Brand:Dwyer Instruments

MPN:WMH-A-C-01

SKU:WMH-A-C-01

List Price:

$750.00

Today's Price:

$390.00

product datasheet

installation instructions

Lead time of 4 days. Chat with Kele experts now

product specifications

Type

Inline Flow Meter

product series specifications

Service: Water

Wetted Materials Body: Brass

Couplings: Brass

Measuring Chamber: Brass

Accuracy WMH-A-X-XX:

Transitional Flow: ±3%

Nominal Flow: ±1.5%

Temperature Limit: 190°F (88°C)

Pressure Limit: 150 psi (10 bar)

Output Signal: Pulse output with frequency proportional to flow rate

Pulse Options: 0.1 gal, 1 gal, 10 gal, 100 gal per pulse (1 L, 10 L, 100 L, 1000 per pulse)

Electrical Rating: 0.01A @ 24VAC/DC

Electrical Connections: Color-coded lead wires, 4.5' (1.5m) long

Mounting Orientation: Horizontal with register facing up

product series features

High-temperature threshold of 190 degrees F (88 C) ideal for high-temperature applications
Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
Designed for long service life and maintenance-free operation
Integral strainer that protects the meter from particulate damage
Easy installation with included coupling adapters
Pulsed output proportional to flow allows for remote flow totalization

more information & related documents

Series Description

The Dwyer WMH Series high-temperature, multi-jet water meter is a series of mechanical, water- totalizing meters that display the total water usage in gallons with m3 options. They are available in a range of body sizes and include NPT or BSPT optional couplings. The high-temperature-resistant brass body is compatible in applications with high-temperature water not suitable with standard brass water meters.

Kele Description

MULTI-JET HOT WATER METER, 5/8IN X 1/2IN PIPE SIZE, 01 GAL PULSE OUTPUT

Manufacturer

Dwyer Instruments
