DS300-6-LV PITOT TUBE LESS VALVE
Brand:Dwyer Instruments
MPN:DS300-6-LV
SKU:DS300-6-LV
List Price:
$1,216.00
Today's Price:
$632.32
Log in for customized pricingproduct specifications
Type
Accessory
product series specifications
Service: Compatible gases or liquids
Wetted Materials:
Sensor Tube: 304 SS
Compression Fitting: Brass
Temperature Limit: 200°F (93.3°C)
Pressure Limit: 200 psig (13.78 bar) at 200°F (93.3°C)
Pipe Sizes:
DS-300: 1 to 10" (2.5 to 25.4 cm)
DS-400: 6 to 24" (15.2 to 61 cm)
Process Connections:
DS-300: 1/4" male NPT compression fitting included
DS400: 3/4" male NPT compression fitting included
Piping Connections:
DS-300: 1/8" female NPT; optional 1/8" female NPT x 1/4" SAE 45 flared adapter sold separately
DS-400: 1/8" female NPT with 1/8" female NPT x 1/4" SAE 45 flared adapters include
product series features
- Multiple sensing point measurement and built-in averaging capability eliminates the need for 'traversing' the flowing stream with single point velocity pressure measurement saving time
- Extremely reliable, proven technology, Pitot tubes, have been used in flow measurement for years
- All models include convenient and quick-acting quarter-turn ball valves to isolate the sensor for zeroing with 1/8 in. female NPT valve assembly process connections
- Furnished with instrument shut-off valves on both pressure connections with 1/8 in. female NPT connections rated at 200 psig (13.7 bar) and 200 degrees F (93.3 C)
- Where valves are not required, they can be omitted at reduced cost
- The Series DS-400 Averaging Flow Sensors are quality constructed from extra strong 3/4 in. dia. stainless steel to resist increased forces encountered at higher flow rates with both air and water
- Economical flow indication when used with appropriate differential pressure gage
- Rugged construction yields, non-clogging, stable design
more information & related documents
Series Description

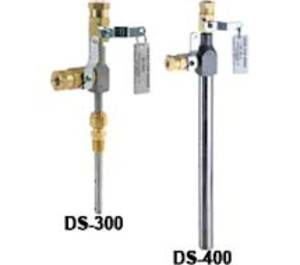

The SERIES DS In-Line Flow Sensors are two Series of averaging Pitot tubes for compatible gases and liquids that provide accurate and convenient flow rate sensing, for schedule 40 pipe, when purchased with suitable differential pressure gage with appropriate range.The Series DS-300 Averaging Flow Sensors are designed to be inserted in the pipeline through a compression fitting and available for pipe sizes from 1 to 10 in. (2.5 to 25.4 cm). Accessories include adapters with 1/4 in. SAE 45° flared ends compatible with hoses supplied with the Model A-471 Portable Capsuhelic® Gage Kit.The Series DS-400 Averaging Flow Sensors are designed for insertion lengths up to 24 in. (61 cm) and include a pair of 1/8 in. NPT x 1/4 in. SAE 45° flared adapters which are compatible with hoses used in the Model A-471 Portable Capsuhelic® Gage Kit. The supplied solid brass mounting adapter has a 3/4 in. dia. compression fitting to lock in required insertion length and a 3/4 in. male NPT thread for mounting in a threaded branch connection (not included).
Kele Description
DS300-6-LV PITOT TUBE LESS VALVE
Manufacturer
Dwyer Instruments
Related Documents
DS Series Datasheet
