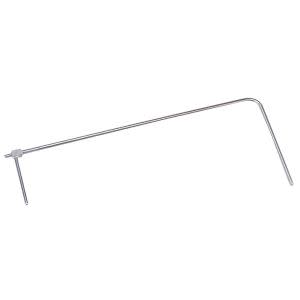

L‑shaped metal pitot tube with a long leg and a short vertical probe.

160-8 | Dwyer Instruments | Flow

Stainless Steel Pitot Tube, 5/16" Dia., 8-5/8" Insertion Length

Brand:Dwyer Instruments

MPN:160-8

SKU:160-8

List Price:

$337.00

Today's Price:

$175.24

product datasheet

installation instructions

catalog page

Lead time of 8 days. Chat with Kele experts now

product specifications

Type

Pitot Tube

product series specifications

Installation: 1/4" connections for 3/8" OD tubing

Mounting: Insertion depth stamped on side of pitot tube; Split flange mounting kit for duct mounting

Material: 304 Stainless Steel

Weight: 0.02 lbs per inch

Warranty: 1 year

product series features

304 stainless steel construction
ASME design
Accurate even with up to 15 degrees misalignment
Insertion depth markings stamped on tube
Air velocity calculator, flow charts, and instructions included
1/4 in. connections for 3/8 in. OD tubing
Handy A-158 split flange for duct mounting
Tube in tube design
One year warranty

more information & related documents

Series Description

160 Series stainless steel pitot tubes are designed for use with differential pressure transmitters, manometers, or air velocity gauges to measure air flow in ducts. See Measuring Air Flow in the Technical Reference Section for complete application information. The 160 Series is designed per ASME and meets AMCA and ASHRAE standards. Insertion depth is stamped on the side of the pitot tubes, and the static pressure port is parallel to the sensing tube to allow easy alignment with air flow. A Model A-158 split flange mounting kit allows for simple, leak-free mounting of the 160 Series.

Kele Description

8IN PITOT TUBE

Manufacturer

Dwyer Instruments
