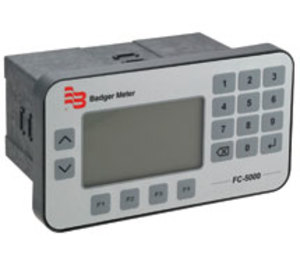

FC5-FD-P3-AC6A-P | Badger Meter | Flow

Power Supply:

Input range 10…40V DC and 9…28V AC RMS

AC input voltage frequency range 50…60 Hz

Maximum 8 Watts power consumption:

Isolated from power ground:

Flow Meter Input:

1 or 2 independent channels

Configurable as square wave 0…30V pulse with 2.5 V threshold

Configurable as sine wave, zero-centered with 200 mV amplitude and 45 mV threshold

0…10 kHz frequency input range

Over-voltage, transient and reverse polarity protected

Frequency Outputs:

2 independent channels

TTL, 1…4000 Hz, square wave

Resolution 0.01 Hz

Uncertainty ±0.01% RDG

Analog Outputs:

2 independent channels

0…5V, 0…10V or 4…20 mA

16-bit resolution (0…10V and 4…20 mA), 15-bit resolution (0…5V)

200 ms, 90-10% step response

Uncertainty ±0.1% of RDG

Field Configurable:

Digital I/O (Optional):

6 independent channels

0…30 Volts as input

De-bounce

0…5V, TTL, 200 ms 90…10% step response, driving <0.1 uF

Relay Outputs:

2 Form C mechanical

Isolated coil drivers

Over-voltage, transient and reverse polarity protected

RS-485 Communications:

4-wire interface/half duplex

Over-voltage/ESD Protection:

Isolated from power ground:

USB Communications:

USB host interface (A connector)

USB device interface (mini B connector):

Over-voltage/ESD/transient protected:

Display/User interface:

Membrane keypad / domed tactile response

128 x 64-pixel backlit graphical display:

Protected from EMI/ RFI:

Keypad interface is protected from ESD:

Flow Calculation: ±0.01% uncertainty

Pollution Degree: 2

Altitude Restriction: Up to 2000 m (6561 ft)

Over-Voltage Rating: Category II

Operator Functions: Unlatch Relays, Reset Totalizer, Unlatch Relays and Reset Totalizer, Inhibit Flow Channels

Flow Rate, Total, Flow Rate and Total

Flow Rate Only: second (S), minute (M), hour (H), day (D)

Temperature:

Digits:8 digits

Units:

°F (Fahrenheit),°C (Celsius), °R (Rankine), or °K (Kelvin)

Decimals: 0...4
