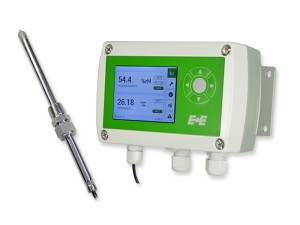

EE310-AP0M1T2HS1F4D2 | E+E Elektronik | Flow

T SENSOR, NO UL, WM, POLY ENCL, S/S SINTERED FLTR, DSP

Brand:E+E Elektronik

MPN:EE310-AP0M1T2HS1F4D2

SKU:EE310-AP0M1T2HS1F4D2

List Price:

$-.--

Today's Price:

$-.--

product series specifications

Measuring range

0...100% RH
-80...180 °C (-112...356 °F)

Accuracy

±1.3% RH
±0.2 °C (0.36 °F)

Digital interface

RS485 with Modbus RTU
Ethernet with Modbus TCP

Outputs

0-1/5/10V, 0/4-20mA

Supply

24V AC/DC

product series features

3.5" TFT colour display
IP65 / NEMA 4X protection rating
Polycarbonate or stainless steel
Logged data shown graphically
USB service interface
2 analogue outputs current / voltage
Probe working range from -80 °C (-112 °F) up to +180 °C (+356 °F) and 20 bar (290 psi)

more information & related documents

Series Description

The EE310 is optimized for best reliability in industrial applications from -80 °C (-112 °F) up to 180 °C (356 °F) and 20 bar (290 psi). In addition to highly accurate measurement of the relative humidity (RH) and temperature (T), the device calculates all other humidity related parameters.

Kele Description

T SENSOR, NO UL, WM, POLY ENCL, S/S SINTERED FLTR, DSP

Manufacturer

E+E Elektronik
