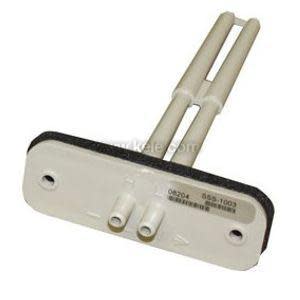

White airflow sensor with two parallel hollow tubes attached to a rectangular plate that has two barbed hose fittings.

SSS-1005 | KMC Controls | Flow

Air Sensor: Differential Pressure, 9-29/32"

Brand:KMC Controls

MPN:SSS-1005

SKU:SSS-1005

List Price:

$102.00

Today's Price:

$19.25

product datasheet

installation instructions

catalog page

product specifications

Process Connection

1/4 in BARB

Connection Size

1/4 in

Type

Air Flow Measuring Probe

Connection

Barbed

Length

10 in

Max Temperature

120 °F

Velocity Range

200 - 6,000 FPM

product series specifications

Connections: 1/4" (6.4 mm) OD connections, fit 3/8" (9.5 mm) OD polyethylene tubing

Operating Temperature: 40°F to 120°F (4°C to 49°C)

Mounting: Integral flange with foam gasket

Length:

SSS-1002 3.16" (8.0 cm) insertion (one sensing point)

SSS-1003 5.41" (13.7 cm) insertion (two sensing points)

SSS-1004 7.66" (19.4 cm) insertion (three sensing points)

SSS-1005 9.91" (25.2 cm) insertion (four sensing points)

Weight:

SSS-1002 0.04 lb (0.02 kg)

SSS-1003 0.05 lb (0.02 kg)

SSS-1004 0.06 lb (0.03 kg)

SSS-1005 0.07 lb (0.03 kg)

Approvals: RoHS

Warranty: 2 years

more information & related documents

Series Description

The SSS-1000 Series airflow sensors sense differential (velocity) pressure of variable air volume, VAV ,units and other locations in main or branch ducts. These air flow sensors are indispensable for Building Automation Systems, BAS, and HVAC applications. Four different lengths allow selection of the sensor to yield accurate readings on terminal box inlet diameters from 4 in. to 20 in. (10.2 to 51.8 cm).

Kele Description

AIR FLOW SENSOR, 9.91IN INSERT.

Manufacturer

KMC Controls
