KMS2-R-68-91-A

KMS2-R-68-91-A | Kele | Flow

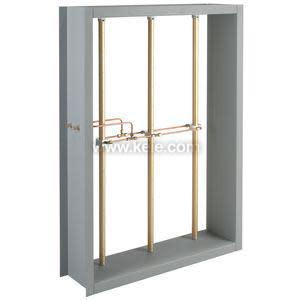

Airflow Station Rectangular 68X91 No Straightner

Brand:Kele

MPN:KMS2-R-68-91-A

SKU:KMS2-R-68-91-A

List Price:

$3,658.00

Today's Price:

$1,902.16



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accuracy

2%

Type

Rectangular Airflow Station

Max Temperature

350 °F

Velocity Range

100 - 10,000 FPM

With Air Straightner

No

Station Length

68 in

Station Width

91 in

product series specifications

    Supply Voltage:
  • Not required
    :
  • Requires a Differential Pressure Transmitter
    Signal Output:
  • Differential air pressure ports
    :
  • (Total P. & Static P.)
    Min/Max Air Velocity :
  • 100 fpm Min, 10,000 fpm Max
    Velocity Formula*:
  • Velocity (FPM) = 4005 x ( ‚àö ‚àÜP in "WC )
    Transmitter Formula*:
  • (FPM / 4005)2 = ‚àÜP
    Accuracy:
  • ±2% with Velocity >100FPM
    Straighting Vanes:
  • 3" long, 1/2" aluminum hexagon cell
    Sensor Type:
  • PITOT array with 2 ports,
    :
  • Total P. & Static P.
    Normal Measurement Range:
  • .0006 "WC to 6.23 "WC
    Size limits:
  • In 1‚Ä= increments
    Rectangle:
  • 72"W x 72"H max (183cm x 183cm)
    Round:
  • 72" Diameter max (183cm)
    Pressure Drop:
  • Not Specified
    Operating Pressure:
  • Not Specified
    Operating Temperature:
  • Up to 350‚Ñâ (177‚ÑÉ)
    Operating Humidity:
  • 0 to 100% Non-condensing
    Media Compatibility:
  • Clean HVAC duct air
    Process Connection:
  • 1/4" Compresstion for copper or poly tube
    Wiring:
  • Pressure transmitter per MNFR
    Mounting:
  • 1.5" Flanges for rectangle & 1" for round
    Best Results:
  • ‚âà2 duct dia from any transition
    :
  • (See install sheet)
    Construction:
  • Assembly per order size
    Casing:
  • 16-gauge galvanized sheet
    Sensor:
  • Rigid anodized aluminum array
    Straightener:
  • Aluminum hex w/0.5‚Ä= cells, 3‚Ä= long
    Enclosure Rating:
  • None
    Dimensions:
  • Casing depth 8‚Ä= (20.3 cm);
    Rectangle:
  • H x W dimensions per order, w/1.5‚Ä= flange
    Round:
  • W diameter per order, w/1‚Ä= flange up to 15‚Ä=
    Weight:
  • About 0.6 lb. per sq ft.
    Approvals:
  • Not Specified
    Warranty:
  • 1 year
    *Formulas based on standard air density = 0.075 lb / ft3:

product series features

  • Multiple total and static pressure sensing ports along the length of the element
  • Factory mounted and pre-piped in a flanged duct section (casing)
  • Optional: Honeycomb airflow straightening section
  • ±2% accuracy from 100 to 800 FPM
  • Construction includes a galvanized casing, aluminum flow sensors
  • Operation up to 350 degrees F
  • Operation from 0 to 100% humidity
  • Standard airflow stations have good salt air resistance and are suitable for most HVAC applications

more information & related documents

Series Description

The Kele KMS2 Series airflow measurement station consists of single or multiple airflow elements, factory mounted and pre-piped in a casing designed for flanged connection to the ductwork. The station can also incorporates an airflow straightening section constructed of aluminum honeycomb having a ½ inch opening and 3 inch depth. Standard materials consist of a G90 galvanized casing, 6063-T5 anodized aluminum flow sensors, and optional 3003 aluminum airflow straightener. The total pressures sensed by the upstream ports are continually averaged within an isolated chamber. The static sensing ports (located where the influence of the velocity head is zero) are averaged in a second isolation chamber. Multiple elements are manifolded together for connection to a differential measurement device for flow measurement and indications. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
