KMS2-R-67-91-B | Kele | Flow

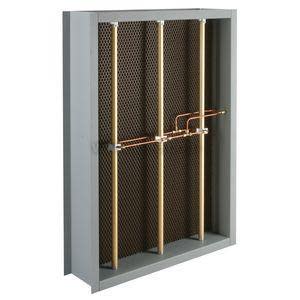

Airflow Station Rectangular 67X91 With Straightner
Manufacturer:Kele
MPN:KMS2-R-67-91-B
SKU:KMS2-R-67-91-B
List Price:
$5,452.00
Today's Price:
$3,053.12
product specifications
Description
Airflow Station Rectangular 67X91 With Straightner
Short Description
AIRFLOW STATION RECTANGULAR 67X91 W/ STRAIGHTNER
product family features
- Multiple total and static pressure sensing ports along the length of the element
- Factory mounted and pre-piped in a flanged duct section (casing)
- Optional: Honeycomb airflow straightening section
- ±2% accuracy from 100 to 800 FPM
- Construction includes a galvanized casing, aluminum flow sensors
- Operation up to 350℉
- Operation from 0 to 100% humidity
- Standard airflow stations have good salt air resistance and are suitable for most HVAC applications
more information & related documents
Family Description
The Kele KMS2 Series airflow measurement station consists of single or multiple airflow elements, factory mounted and pre-piped in a casing designed for flanged connection to the ductwork. The station can also incorporates an airflow straightening section constructed of aluminum honeycomb having a ½ inch opening and 3 inch depth. Standard materials consist of a G90 galvanized casing, 6063-T5 anodized aluminum flow sensors, and optional 3003 aluminum airflow straightener. The total pressures sensed by the upstream ports are continually averaged within an isolated chamber. The static sensing ports (located where the influence of the velocity head is zero) are averaged in a second isolation chamber. Multiple elements are manifolded together for connection to a differential measurement device for flow measurement and indications. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.
Kele Description
AIRFLOW STATION RECTANGULAR 67X91 W/ STRAIGHTNER
Manufacturer
Kele
