KMS2-R-60-82-A

KMS2-R-60-82-A | Kele | Flow

Airflow Station Rectangular 60X82 No Straightner

Manufacturer:Kele

MPN:KMS2-R-60-82-A

SKU:KMS2-R-60-82-A

List Price:

2,114.00

Today's Price:

1,183.84



(login for better pricing)
USD
Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product specifications

Description

Airflow Station Rectangular 60X82 No Straightner

Short Description

AIRFLOW STATION RECTANGULAR 60X82 NO STRAIGHTNER

product family features

  • Multiple total and static pressure sensing ports along the length of the element
  • Factory mounted and pre-piped in a flanged duct section (casing)
  • Optional: Honeycomb airflow straightening section
  • ±2% accuracy from 100 to 800 FPM
  • Construction includes a galvanized casing, aluminum flow sensors
  • Operation up to 350℉
  • Operation from 0 to 100% humidity
  • Standard airflow stations have good salt air resistance and are suitable for most HVAC applications

more information & related documents

Family Description

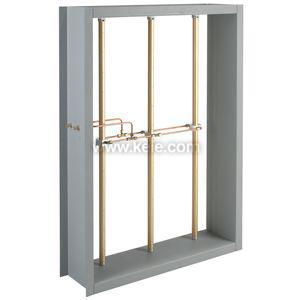

The Kele KMS2 Series airflow measurement station consists of single or multiple airflow elements, factory mounted and pre-piped in a casing designed for flanged connection to the ductwork. The station can also incorporates an airflow straightening section constructed of aluminum honeycomb having a ½ inch opening and 3 inch depth. Standard materials consist of a G90 galvanized casing, 6063-T5 anodized aluminum flow sensors, and optional 3003 aluminum airflow straightener. The total pressures sensed by the upstream ports are continually averaged within an isolated chamber. The static sensing ports (located where the influence of the velocity head is zero) are averaged in a second isolation chamber. Multiple elements are manifolded together for connection to a differential measurement device for flow measurement and indications. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

AIRFLOW STATION RECTANGULAR 60X82 NO STRAIGHTNER

Manufacturer

Kele
