RAG12N | Johnson Controls | Flow

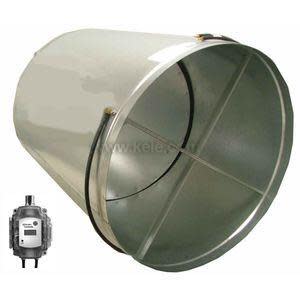

Airflow Measuring System, 12 Diameter, Differential Pressure Transmitter, No Actuator
Brand:Johnson Controls
MPN:RAG12N
SKU:RAG12N
List Price:
$1,727.00
Today's Price:
$898.04
product specifications
Type
Airflow Measuring System
Length
12 in
Max Temperature
200 °F
Velocity Range
400-4,000 FPM
product series specifications
- Leakage - Fully Closed:
- 0.15 scfm maximum per inch of blade circumfrence at 4-inch w.g.
- Operating Torque:
- :
- 8 in diameter at 2 in w.g. 52 lb./in.
- :
- 16 in diameter at 2 in w.g. 84 lb./in
- :
- 24 in diameter at 2 in w.g. 116 lb./in
- Pressure Drop (in. w.g.) - Fully Open:
- 1,000 cfm 2,000 cfm 3,000 cfm 4,000cfm
- :
- 12 in. 0.017 0.06 0.15 0.25
- :
- 24 in. 0.005 0.010 0.010 0.010
- Velocity and Pressure:
- 400 to 4,000 fpm
- Operating Temperature :
- :
- Standard Operating Conditions -40° to 200‚Ñâ (-40°to 93‚ÑÉ)
- :
- Actuator -4° to 122‚Ñâ (-20° to 50‚ÑÉ)
- Weight:
- :
- Damper 5 lb/sq. ft. (2.7 kg/sq. ft.)
- :
- Actuator 2.9 lb (1.6 kg) per actuator
- Warranty:
- 1 year
product series features
- Formed shroud inserts easily into round ductwork
- One-piece construction increases rigidity and strength
- Optional factory-installed actuator reduces installation and commissioning time
- Airfoil shaped flow sensing blades 18 inch (457 mm) diameter and larger or ABS plastic flow cross on all other units limit pressure drop through the damper
- DMPR-RA001 pressure transmitter is included
more information & related documents
Series Description
The Johnson Controls RA-2000 Series airflow measuring system is equipped with a one-piece ABS plastic flow sensing cross with a 16 inch (406 mm) diameter or less, and a two-piece anodized aluminum extrusion sensing tube with an 18 inch (457 mm) diameter and larger. The RA-2000 Airflow Measuring system is designed to meet industry requirements for a round air measuring system with low leakage and east installation to spiral ductwork. The design of the RA-2000 system incorporates a low leakage control damper with a neoprene seal placed between two round blades. The airfoil sensing tubes sample the air pressure across the full diameter of the duct.
Kele Description
RA-2000 AIRFLOW SYSTEM 12IN DPT NO ACTUATOR
Manufacturer
Johnson Controls
