RAA-16-X | Johnson Controls | Flow

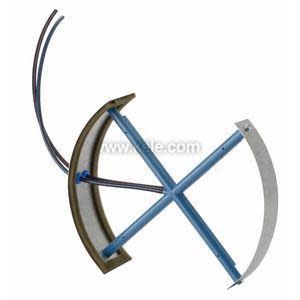

Center Averaging Flow Probe Kit- Round Damper, 16" Diameter, No Actuator, No Differential Pressure Transmitter
Brand:Johnson Controls
MPN:RAA-16-X
SKU:RAA16X
List Price:
$221.00
Today's Price:
$114.92
Log in for customized pricingproduct specifications
Type
Round Air Flow Station
Accuracy
5%
Length
16 in
Max Temperature
120 °F
Velocity Range
400 - 5,000 FPM
product series specifications
Accuracy: ±5% of flow
Frame: 20-gauge galvanized steel
Probe Material: High-impact ABS plastic
Seal Material: 3/16" (0.5 cm) thick polyurethane foam
Velocity Range: 400 to 5,000 fpm (2.03 to 25.4 mps)
Operating Temperature: 20° to 120°F (-6.7° to 48.9°C)
Minimum Size: 6" (15.2 cm) diameter
Maximum Size: 16" (40.6 cm) diameter
Warranty: 1 year
product series features
- Multipoint center averaging provides accurate flow readings
- Insertion mounting allows easy installation
- DP transducer included
- Plenum rated FR94 V
more information & related documents
Series Description
The Johnson Controls RA-2001 Series center-averaging flow probe kit was developed to satisfy the requirement for an accurate center-averaging flow probe for use in spiral duct applications. The RA-2001 installs in a cut slot in the existing duct. The airflow measuring probes were developed to meet the market need for an air measuring station that is easily installed in an existing duct.
Kele Description
RA-2001 CENTER AVG FLOW PROBE KIT, 16 IN, W/O DPT
Manufacturer
Johnson Controls
Related Documents
RA-2001 Datasheet
