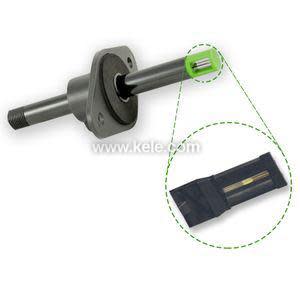

EE671-V2XCKD | E+E Elektronik | Flow

Supply Voltage: 10-29 V DC

Supply Current: Max. 50 mA at 4000 ft/min

Output Signal:

0-1 V (max. 1 mA)

0-5 V (max. 1 mA)

0-10 V2 (max. 1 mA)

Measurement Range:

0-1000 ft/min

0-2000 ft/min

0-3000 ft/min

0-4000 ft/min

Accuracy: Accuracy at 20°C (68°F), 100...1000 ft./min, 40 ft/min + 3% of measured value 45% RH, 1013 hPa (14.7 psi), 200...2000 ft/min, 60 ft/min + 4% of measured value 200...3000 ft/min, 70 ft/min + 5% of measured value, 200...4000 ft/min, 80 ft/min + 6% of measured value

Response Time: typ. 4 sec or typ. 1 (at constant temperature)

Temperature Range:

Operation: -4° to 140°F (-20° to 60°C)

Storage: -22° to 140°F (-30° to 60°C)

Operating Range Humidity: 5....95% rh (non-condensing)

Connection:

Cable version: 1.6 ft, 6.6 ft cable, PVC, temperature-flexible, AWG 23 with ferrules

Electromagnetic compatibility:

EN61326-1

EN61326-2-3

Material / protection class: Polycarbonate / IP50 (probe head); IP54 (housing)

Approvals: CE

Warranty: 1 year
