EE671-T15A2HV26 | E+E Elektronik | Flow

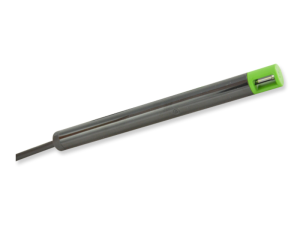

HVAC AIR VELOCITY PROBE, WITH M12 PLUG, 0-5V, 0…10 M/S

Brand:E+E Elektronik

MPN:EE671-T15A2HV26

SKU:EE671-T15A2HV26

List Price:

$1,025.00

Today's Price:

$533.00

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Air Velocity Transmitter

product series specifications

Measuring range

0...5m/s (0...1000ft/min)
0...10m/s (0...2000ft/min)
0...15m/s (0...3000ft/min)
0...20m/s (0...4000ft/min)

Accuracy

0.5... 5m/s: ±(0.2m/s (40ft/min) +3% of MV)
1... 10m/s: ±(0.3m/s (60ft/min) +4% of MV)
1... 15m/s: ±(0.35m/s (70ft/min) +5% of MV)
1... 20m/s: ±(0.4m/s (80ft/min) +6% of MV)

Outputs

0-1/5/10 V (max. 1 mA)
Modbus RTU

Supply

10-29V DC SELV

product series features

High accuracy and long-term stability
Outstanding resistance to contamination
Easy and quick mounting
User configurable

more information & related documents

Series Description

EE671 is available with fix installed cable or with plug connection. The measured air velocity up to 20 m/s (4000 ft/min) is available at voltage output 0 - 1 V, 0 - 5 V or 0 - 10 V or on the Modbus RTU interface. The alignment nut on the probe and the matching mounting flange simplify the installation, the correct orientation in the air flow and the precise control of the immersion depth. With an optional configuration kit the user can set via a digital setup interface the output configuration and perform an adjustment of the probe. <br>

Kele Description

HVAC AIR VELOCITY PROBE, WITH M12 PLUG, 0-5V, 0…10 M/S

Manufacturer

E+E Elektronik
