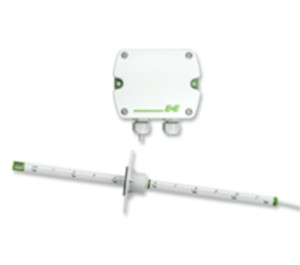

* product series image displayed

EE650-T2J3L200/P3BD9 | E+E Elektronik | Flow

AIR VELOCITY TRANSMITTER, DUCT MOUNT, RS-485 OUTPUT, 200MM PROBE, BACNET MS/TP, 76800 BAUD

Brand:E+E Elektronik

MPN:EE650-T2J3L200/P3BD9

SKU:EE650-T2J3L200/P3BD9

List Price:

$-.--

Today's Price:

$-.--

Lead time of 0 days. Chat with Kele experts now

product specifications

Type

Velocity Transmitter

Accuracy

Length

8 in

Max Temperature

122 °F

Velocity Range

100 - 10,000 FPM

product series specifications

Supply Voltage: 24 VAC/DC ±20%

Power Supply: Class III

Supply Current: Analogue: 170 mA @ 24 VAC, 70 mA @ 24 VDC; RS485: 120 ma @ 24 VAC, 50 mA @ 24 VDC

Accuracy: ±40 fpm (0.2 m/s), plus 3% of measured value, at 68‚Ñâ (20‚ÑÉ) and 45% RH

Output Signal: 0-10 VDC or 4-20 mA; jumper selectable

Loads: 0-10 VDC output, 10kΩ minimum resistance; 4-20 mA output, 450Ω maximum resistance

Velocity Range: 0-2000 fpm (0-10 m/s), 0-3000 fpm (0-15 m/s) or 0-4000 fpm (0-20 m/s)

Wiring: screw terminals max. 1.5 mm² (AWG 16)

Response Time: 4 seconds typically or 1 second at constant temperature

Operating Temperature:

Probe: -25 to 50°C (-13 to 122°F)

Electronics: -10 to 50°C (-14 to 122°F)

Enclosure Rating: IP65/NEMA 4, remote probe is IP20

Mounting: Duct mount with 4 screws

product series features

Adjustment and configuration of measuring range, output signal, response time, bus address, and termination resistor
E+E sensor VTQ with exceptional mechanical stability and resistance to pollution
Electronics on the underside of the PCB offer optimum protection against mechanical damage during installation
External mounting holes
Bayonet screws open/close with 1/4 rotation
Knockout for 1/2 in. conduit fitting (US )
IP65/NEMA 4 protection class enclosure

more information & related documents

Series Description

The EE650 Series airflow velocity transmitter is ideal for accurate and reliable measurement in building automation system and HVAC applications. It incorporates E+E's state-of-the-art, thin-film, air velocity sensing element that operates on anemometer technology and is protected against pollution for long-term performance.The EE650 with analogue output, the measuring range, output signal, response time of 1 or 4 seconds are selectable by jumpers. The bus address, termination resistor, and response time of the Modbus RTU and BACnet MS/TP versions can also be easily set on the electronics board. Installation is fast and easy with the enclosure design and mounting flange, and configuration is quick with the optional adapter cable and free configuration software.

Kele Description

AIR VELOCITY TRANSMITTER, DUCT MOUNT, RS-485 OUTPU

Manufacturer

E+E Elektronik
