SCE12N10MP | Saginaw Control & Engineering | Enclosures

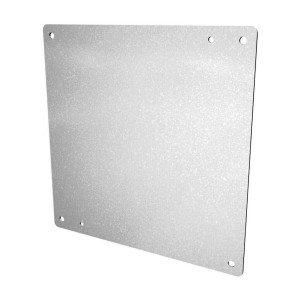

STEEL PANEL 12X10

Brand:Saginaw Control & Engineering

MPN:SCE12N10MP

SKU:SCE12N10MP

List Price:

$39.00

Today's Price:

$20.28

catalog page

Lead time of 5 days. Chat with Kele experts now

product specifications

Type

Solid Panel

Material

Steel

Enclosure Width

10 in

Enclosure Height

12 in

product series specifications

Dimensions in (cm): 6 x 6 x 4 (15 x 15 x 10), 8 x 6 x 4 (20 x 15 x 10), 8 x 8 x 4 (20 x 20 x10), 8 x 8 x 6 (20 x 20 x 15), 10 x 8 x 4 (25 x 20 x10), 10 x 8 x 6 (25 x 20 x15), 10 x 10 x 4 (25 x 25 x 10), 10 x 10 x 6 (25 x 25 x 15), 12 x 10 x 4 (30 x 25 x 10), 12 x 10 x 6 (30 x 25 x 15), 12 x 12 x 4 (30 x 30 x 10), 12 x 12 x 6 (30 x 30 x 15), 12 x 12 x 8 (30 x 30 x 20), 14 x 12 x 4 (36 x 30 x 10), 14 x 12 x 6 (36 x 30 x 15), 14 x 12 x 8 (36 x 30 x 20), 16 x 12 x 6 (41 x 30 x 15), 16 x 12 x 8 (41 x 30 x20), 16 x 16 x 6 (41 x 41 x 15), 16 x 16 x 8 (41 x 41 x 20), 16 x 20 x 6 (41 x 51 x 15)

Approvals:NEMA Type 1, UL Listed type 1

Meets ARRA or BAA:Yes

Sub Panel:SCE6N6MP, SCE86MP, SCE8N8MP, SCE10N8MP, SCE10N10MP, SCE12N10MP, SCE12N12MP, SCE14N12MP, SCE16N12MP, SCE16N16MP, SCE20N16MP

Sub Panel Dimensions in (cm):4 x 4 (10 x 10), 6 x 4 (15 x 10), 6 x 6 (15 x 15), 8 x 6 (20 x 15), 8 x 8 (20 x 20), 10 x 8 (25 x 20), 10 x 10 (25 x 25), 12 x 10 (30 x 25), 14 x 10 (36 x 25), 14 x 14 (36 x 36), 18 x 14 (46 x 36)

Weight lb (Kg):4 (1.8), 5 (2.27, 6 (2.72), 7 (3.18), 8 (3.630, 8.5 (3.86), 9 (4.1), 8 (3.63), 10 (4.54), 12 (5.45), 11 (4.99), 14 (6.36), 17 (7.72), 16 (7.26), 20 (9.09), 21 (9.53)

product series features

NEMA 1 construction
16 awg and 14 awg carbon steel depending on its size
Spot weld construction
Standoffs provided for mounting optional panels
Butt hinge
Doors open 180 degrees
Black quarter turn latches
Latches are opened or closed with a screwdriver
Ground stud on door
Mounting holes in back of enclosure
Subpanel mounting hardware
ANSI-61 gray powder coat finish (white powder-coated sub panel)
UL File #E69392

more information & related documents

Series Description

The Saginaw SCE Series small enclosures are designed to house electrical controls, instruments and components in areas that do not require oil, water, and dust tight protection.

Kele Description

STEEL PANEL 12X10

Manufacturer

Saginaw Control & Engineering
