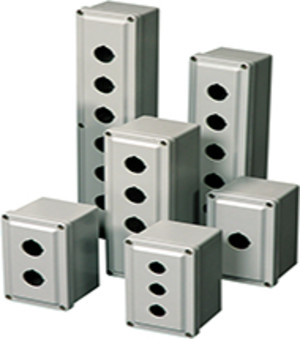

* product series image displayed

CF4PB | Stahlin Enclosures | Enclosures

ENCLOSURE, PUSHBUTTON, 4 HOLES, 30MM, NEMA 4X/6P, FIBERGLASS, 11X4X4, LIFT OFF COVER, 4 SCREWS

Brand:Stahlin Enclosures

MPN:CF4PB

SKU:CF4PB

List Price:

$235.00

Today's Price:

$122.20

product datasheet

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Fiberglass

Material

Fiberglass

Enclosure Width

4 in

Enclosure Height

11 in

Enclosure Depth

4 in

Mount

Screw

product series specifications

Material: SolarGuard® - Hot compression molded fiberglass reinforced polyester (thermoset)

Gasket: Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal

Cover Screws: Recessed captive stainless steel screws

Stainless Steel Hardware: 300 Series stainless used on all external hardware

Enclosure Mounting: Mounting wells located under the cover, outside gasket area

Soft Edge Design: Rounded edges, minimal protrusions or exposed pocket areas for assembly of dust and debris

Color: Available standard glacier grey (PMS 428C)

NEMA 250, UL Listed UL50,UL50e,UL508A: File E64358, Type 1, 3R, 4X, 6P, 12

CSA Std C22.2: File LR069014, Type 1, 3R, 4X, 6P, 12

IEC60529: UL File E362920, IP 66, IP67,IP68

Plenum Space (UL2043) Compliant: Yes

Temperature Range: (-76°F to +274°F) (-60°C to +134°C)

Flammability Rating: UL94-SV

Impact Rating: IK10

Self Extinguishing: Non-flame propagating

Chemical Resistance: Full chemical resistance charts listed in appendix

NFPA No. 101 Flame Spread: Class A (1)

Outdoor Exposure UL746C: (f1) Rated

product series features

Designed for in-line pushbutton stations and multi-hole configurations
Available in 30mm and 22mm configurations
Features a continuous polyurethane gasket for a complete environment seal

more information & related documents

Series Description

The Stahlin PushButton Series was designed for general-purpose electrical and electronic applications and control stations. Designed to be easily adaptable for most common pushbuttons and indicator lights in both indoor and outdoor environments.It includes two enclosure designs, an in-line style and a multi-hole style configuration. The in-line enclosure will house pushbuttons, switches and pilot lights in both 30mm and 22mm configurations in a full range of sizes. The multi-hole design can accommodate up to nine 30mm operator components on a single cover and is ideal for high density pushbutton mounting.

Kele Description

ENCLOSURE, PUSHBUTTON, 4 HOLES, 30MM, NEMA 4X/6P, FIBERGLASS, 11X4X4, LIFT OFF COVER, 4 SCREWS

Manufacturer

Stahlin Enclosures
