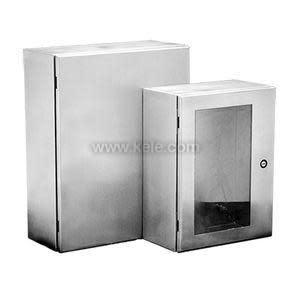

Two stainless steel electrical cabinets; the smaller one has a glass front panel and lock

CSD482410SS | Hoffman Enclosures | Enclosures

Wall-Mount Type 4/12 Enclosure, Bulletin CWS (Stainless Steel CONCEPT Enclosures), Size/Dims: 48.00x24.00x10.00, Material/Finish: SS Type 304

Brand:Hoffman Enclosures

MPN:CSD482410SS

SKU:C-SD482410SS

List Price:

$11,603.00

Today's Price:

$6,033.56

product datasheet

catalog page

Lead time of 6 days. Chat with Kele experts now

product specifications

Type

Metalic

Material

Stainless Steel

Enclosure Width

24 in

Enclosure Height

48 in

Enclosure Depth

10 in

Mount

Hinged

product series features

Minimum width body flange for maximum door opening
Hidden hinges for clean aesthetic appearance
Door removable by pulling captive hinge pins
Seamless foam-in-place one-piece gasket for oil-tight and dust-tight seal
Furnished with all hardware for wall mounting and seals for the mounting holes
Panel-mounting studs for optional subpanels and accessories
Door bar on hinge side for wire management and ground
Provisions on door for thermoplastic data pocket
UL listed, File #E61997
CSA certified, File #LR42186
Rated NEMA 4, 12, and 13
ANSI 61 gray polyester powder coating inside and out with white panels
Six enclosure sizes available in RAL 9001 beige polyester powder coating

more information & related documents

Series Description

The Hoffman Concept Series features NEMA 4, NEMA 12, and NEMA 13 rated enclosures and panels. The C-SD Series electrical boxes are attractive single-door, wall-mounted enclosures designed to safely house electrical and pneumatic components. Seams for each enclosure are continuously welded and ground smooth, so there are no holes and knock-outs. Kele is the leading supplier of building automation products. When you need the right product, right now, count on Kele.

Kele Description

NEMA 4/12/13 48X24X10 CONCEPT SS ENCL

Manufacturer

Hoffman Enclosures
