PC1614CC | Stahlin Enclosures | Enclosures

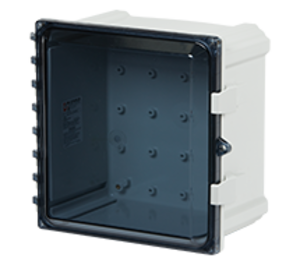

ENCLOSURE, NEMA 4X/6P, POLYCARBONATE, 16X14X8, POLYSTAR, CLEAR, HINGED, PADLOCK LATCH
Brand:Stahlin Enclosures
MPN:PC1614CC
SKU:PC1614CC
List Price:
$724.00
Today's Price:
$376.48
Log in for customized pricingproduct specifications
Type
Poly
Material
Polycarbonate
Enclosure Width
14 in
Enclosure Height
16 in
Enclosure Depth
8 in
Enclosure Rating
NEMA 4X
Mount
Hinged
product series specifications
Material: polycarbonate with UV inhibitors
Gasket Material: neoprene rope style, poured polyurethane seamless gasket on select sizes
Recessed Screws: no protruding surfaces
Stainless Steel Hardware: 300 Series Stainless Steel
Mounting Bosses: panel mounting capability for fixed rear panel
Metal Inserts: all threaded brass inserts accepting 10-32 screws
Side Mount Solutions: variable height, any side mount capability
Hinge and Latch Material: polycarbonate with UV inhibitors
Color: available standard in RAL 7541C
NEMA 250, cULus Listed UL50,UL50e,UL508A: UL Listed File: E319779, Type 1, 3R, 4, 4X, 6P, 12
IEC60529: UL Listed File: E362920; IP66, IP68
Temperature Range: (-40°F to +248°F) (-40°C to +120°C)
Flammability Rating: UL94-5V0
Self Extinguishing: non-halogenated, non-flame propagating
Chemical Resistance: full chemical resistance charts listed in appendix
Outdoor UV Exposure: (fl) Rated
product series features
- Utilized for outdoor and indoor applications
- Polycarbonate material with UV inhibitors
- Designed to perform in cold-weather applications
more information & related documents
Series Description
The Stahlin PolyStar® enclosures are intended to be utilized for outdoor and indoor applications, manufactured with polycarbonate designed to perform in cold-weather applications. In general, the product performance will not be adversely affected until temperatures below -40°F are realized.
Kele Description
ENCLOSURE, NEMA 4X/6P, POLYCARBONATE, 16X14X8, POLYSTAR, CLEAR, HINGED, PADLOCK LATCH
Manufacturer
Stahlin Enclosures
Related Documents
PolyStar - PC
