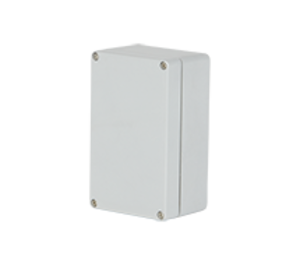

* product series image displayed

D7114W | Stahlin Enclosures | Enclosures

ENCLOSURE, NEMA 4X/6P, FIBERGLASS, 7X11X4, DURABOXX, OPAQUE, FLUSH FIT COVER, CAPTIVE SCREWS

Brand:Stahlin Enclosures

MPN:D7114W

SKU:D7114W

List Price:

$465.00

Today's Price:

$241.80

product datasheet

Lead time of > 15 days. Chat with Kele experts now

product specifications

Type

Fiberglass

Material

Fiberglass

Enclosure Width

11 in

Enclosure Height

7 in

Enclosure Depth

4 in

Mount

Screw

product series specifications

Material: Hot compression-molded fiberglass reinforced polyester (thermoset)

Gasket: Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal

Recessed Screws: No protruding surfaces

Stainless Steel Hardware: 300 Series stainless used on all hardware

Mounting Bosses: Panel mounting capability for fixed rear panel or DIN rail

Metal Inserts: All bosses utilize threaded brass inserts accepting M6 screws

Soft Edge Design: Rounded edges, minimal protrusions or exposed pocket areas for assembly of dust and debris

NEMA 250, UL Listed UL50, UL50e, UL508A: File E64358, Type 1, 3, 3S, 4X, 6, 6P, 12

CSA Std C22.2: File LR069014, Type 1, 3, 3S, 4X, 6, 6P, 12

IEC60529: IP66, IP67, IP68

Temperature Range: (-26°F to +257°F) (-32°C to +125°C)

Flammability Rating: UL94-V0

Self Extinguishing: Non-halogenated, Non-flame propagating

Outdoor Exposure UL746C: (f1) Rated

product series features

Developed for extreme ruggedness
Sleek design
Flush-fitting cover fastened by captive lid screws

more information & related documents

Series Description

The Stahlin DuraBoxx® Series (D Series) was developed for extreme ruggedness, sleek design, and shallow depths. It features a flush-fitting cover fastened by captive lid screws. DuraBoxx® enclosures offer rugged, durable performance in both indoor and outdoor environments. Their pleasing aesthetics and flush cover design also make them well-suited for high-end electronic applications.

Kele Description

ENCLOSURE, NEMA 4X/6P, FIBERGLASS, 7X11X4, DURABOXX, OPAQUE, FLUSH FIT COVER, CAPTIVE SCREWS

Manufacturer

Stahlin Enclosures
