A16H12BLP | Hoffman Enclosures | Enclosures

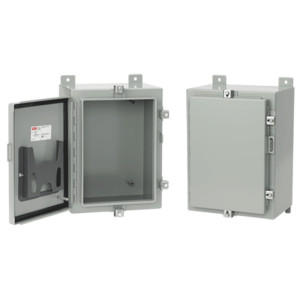

16 x 12 x 8 Hoffman Continuous Hinge Enclosure with Clamps, NEMA 4 with Panel

Brand:Hoffman Enclosures

MPN:A16H12BLP

SKU:A-16H12BLP-P

List Price:

$1,562.00

Today's Price:

$812.24

product datasheet

catalog page

Lead time of 9 days. Chat with Kele experts now

product specifications

Type

Enclosure Only

Material

Steel

Enclosure Width

12 in

Enclosure Height

16 in

Enclosure Depth

8 in

Enclosure Rating

NEMA 4

Mount

Hinged

product series features

Continuously welded or ground-smooth seam, no holes or knockouts
Seamless, watertight foam gasket for tight seal
Hasp and staple for padlocking
Removable door
Data pocket included
Collar studs provided for mounting optional subpanels
Steel subpanels available
Fans, heaters, louvers, and windows available
UL File #E61997
CSA File #LR42186, RoHs
One-year warranty

more information & related documents

Series Description

Hoffman A-ALP and A-BLP Series NEMA 4 enclosures are designed to house electrical and pneumatic controls, instruments, and components. These enclosures provide protection from windblown dust and rain, splashing water, and hose-directed water.

Kele Description

NEMA 4 16X12X8 ENCLOSURE W/PNL

Manufacturer

Hoffman Enclosures
