SCE20R1606LP | Saginaw Control & Engineering | Enclosures

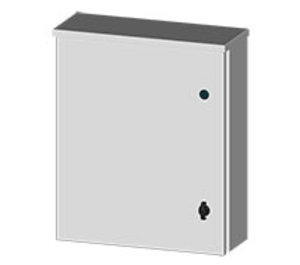

NEMA 3R 20X16X6 ENCLOSURE
Brand:Saginaw Control & Engineering
MPN:SCE20R1606LP
SKU:SCE20R1606LP
List Price:
$634.00
Today's Price:
$329.68
Log in for customized pricingproduct specifications
Type
Enclosure Only
Enclosure Width
16 in
Enclosure Height
20 in
Enclosure Depth
6 in
Mount
Hinged
product series features
- Drip-shield top and seam-free sides, front, and back
- Galvanized steel lift-off hinges with stainless steel pins
- Cover fastened securely with draw-pull catches
- Provisions for padlocking on each draw-pull catch
- ANSI 61 gray polyester-powder coating inside and out over galvanized steel
- Optional steel panels with white finish
- UL File #E69392
- CSA certified
- One-year warranty
more information & related documents
Series Description
Saginaw R-LP Series NEMA 3R lift-off hinged cover enclosures can be used to house controls and instruments. Each NEMA enclosure provides protection in outdoor installations against rain, sleet, and snow. The NEMA 3R boxes also protect indoor installations against dripping water, making them ideal for building automation systems, BAS, and HVAC applications.
Kele Description
NEMA 3R 20X16X6 ENCLOSURE
Manufacturer
Saginaw Control & Engineering
