WF10LP | Hoffman Enclosures | Enclosures
Type 3R Drive Encl w 6in fan, Bulletin A3RD (WeatherFlo Type 3 Drive Enclosures), Size/Dims: 35.00x24.00x12.00, Material/Finish: Galv/Paint
Brand:Hoffman Enclosures
MPN:WF10LP
SKU:WF10LP
List Price:
$3,579.00
Today's Price:
$1,861.08
Log in for customized pricingproduct specifications
Type
Enclosure with Fan
Material
Steel
Enclosure Width
24 in
Enclosure Height
35 in
Enclosure Depth
12 in
Enclosure Rating
NEMA 3R
Mount
Hinged
product series specifications
Mounting Keyholes: 29.94 x 13 (760 x 330), 35.94 x 13 (913 x 330), 41.94 x 13 (1065 x 330), 47.94 x 13 (1218 x 330), 55.94 x 27 (1421 x 686), 67.94 x 27 (1726 x 686)
Panel Size: 14 (6.4), 18 (8.2), 22 (10.0), 27 (12.2), 46 (20.9), 59 (26.8)
Dimensions: 29 x 24 x 12 (737 x 610 x 305 mm), 35 x 24 x 12 (889 x 610 x 305 mm), 41 x 24 x 12 (1041 x 610 x 305 mm), 47 x 24 x 14 (1194 x 610 x 356 mm), 55 x 36 x 16 (1397 x 914 x 406 mm), 67 x 36 x 16 (1702 x 914 x 706 mm)
Weight: 106 (48.1), 111 (50.3), 124 (56.2), 135 (61.2), 140 (63.5), 165 (74.8)
Additional Specifications:
DAH2001A, DAH4001B
Horsepower: 3, 10, 25, 40, 75, 100
Sub Panel: A-24P24, A-30P24, A-36P24, A-42P24, A-48P36, A-60P36
Sub Panel Dimensions: 21 x 21 (533 x 533 mm), 27 x 21 (686 x 533 mm), 33 x 21 (838 x 533 mm), 39 x 21 (991 x 533 mm), 45 x 33 (1143 x 838 mm), 57 x 33 (1448 x 838 mm)
product series features
- Active cooling ventilation system with factory-installed fan and filter (115 VAC)
- Terminal power connection for fan
- Easy access washable expanded metal filter
- Front hood exhaust and intake saves interior space
- Quarter turn latch with padlock attachment
- Collar studs for mounting back panel
- Largest two sizes constructed of aluminum to reduce weight
- Grounding provision on door and body
- DAH series heaters can be added to raise the temperature and prevent condensation
- 16 and 14 gauge galvanized steel
- UL File #E61997
- One-year warranty
more information & related documents
Series Description

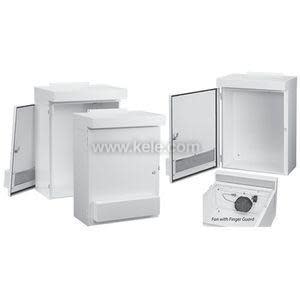

The Hoffman WF Series enclosures have a forced-air ventilation system for cooling drives or other heat producing equipment in applications that require outdoor protection. The enclosures have a white polyester powder finish that will reduce the solar heat load by up to 70% compared to a gray enclosure. An integrated solar shield on the top adds additional solar heat reduction. The integral fan and vent placement optimizes heat removal by drawing in from the bottom and exhausting at the top. Gasketing and the filter protects against contaminants entering the enclosure. An adjustable thermostat (70° to 140° F) brings on the fan when needed.
Kele Description
NEMA 3R ENCL W/ FAN 35X24X12
Manufacturer
Hoffman Enclosures
Related Documents
WF Series Installation Sheet
