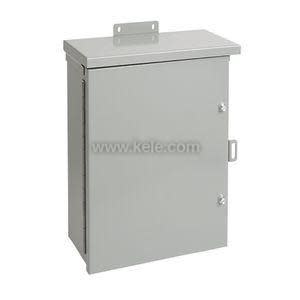

A24R208HCR | Hoffman Enclosures | Enclosures
Type 3R Enclosure, Hng Cover, Bulletin A3M (Hinged Cover Type 3R Medium Enclosures), Size/Dims: 24.00x20.00x8.00, Material/Finish: Galv/paint
Brand:Hoffman Enclosures
MPN:A24R208HCR
SKU:A24R208HCR
List Price:
$1,298.00
Today's Price:
$674.96
Log in for customized pricingproduct specifications
Type
Enclosure Only
Material
Steel
Enclosure Width
20 in
Enclosure Height
24 in
Enclosure Depth
8 in
Mount
Hinged
product series features
- Drip-shield top and seam-free sides, front, and back
- Galvanized steel lift-off hinges with stainless steel pins
- Cover fastened securely with draw-pull catches
- Provisions for padlocking on each draw-pull catch
- Embossed mounting holes on back of enclosure
- Gasketing along top of door
- ANSI 61 gray polyester-powder coating inside and out over galvanized steel
- Optional steel panels with white finish
- Fans, heaters, louvers, and windows available
- UL File #E27567
- CSA File #LL42184, RoHs
- One-year warranty
more information & related documents
Series Description
Hoffman A-HCLO Series NEMA 3R hinge-cover lift-off enclosures can be used to house controls and instruments. Each NEMA enclosure provides protection in outdoor installations against rain, sleet, and snow. The NEMA 3R boxes also protect indoor installations against dripping water, making them ideal for building automation systems, BAS, and HVAC applications.
Kele Description
NEMA 3R 24X20 HINGED 2 SCREW ENCLOSURE
Manufacturer
Hoffman Enclosures
Related Documents
A-HCLO series datasheet
